LED-strips (Indoor/Outdoor) VARDAflex Strips (Indoor)

Accessories for VARDAflex (indoor) 70324

für VARDAflex LED-Strips Einspeisung Gapless Einfarbig 8mm IP20

Article nr.: 70324

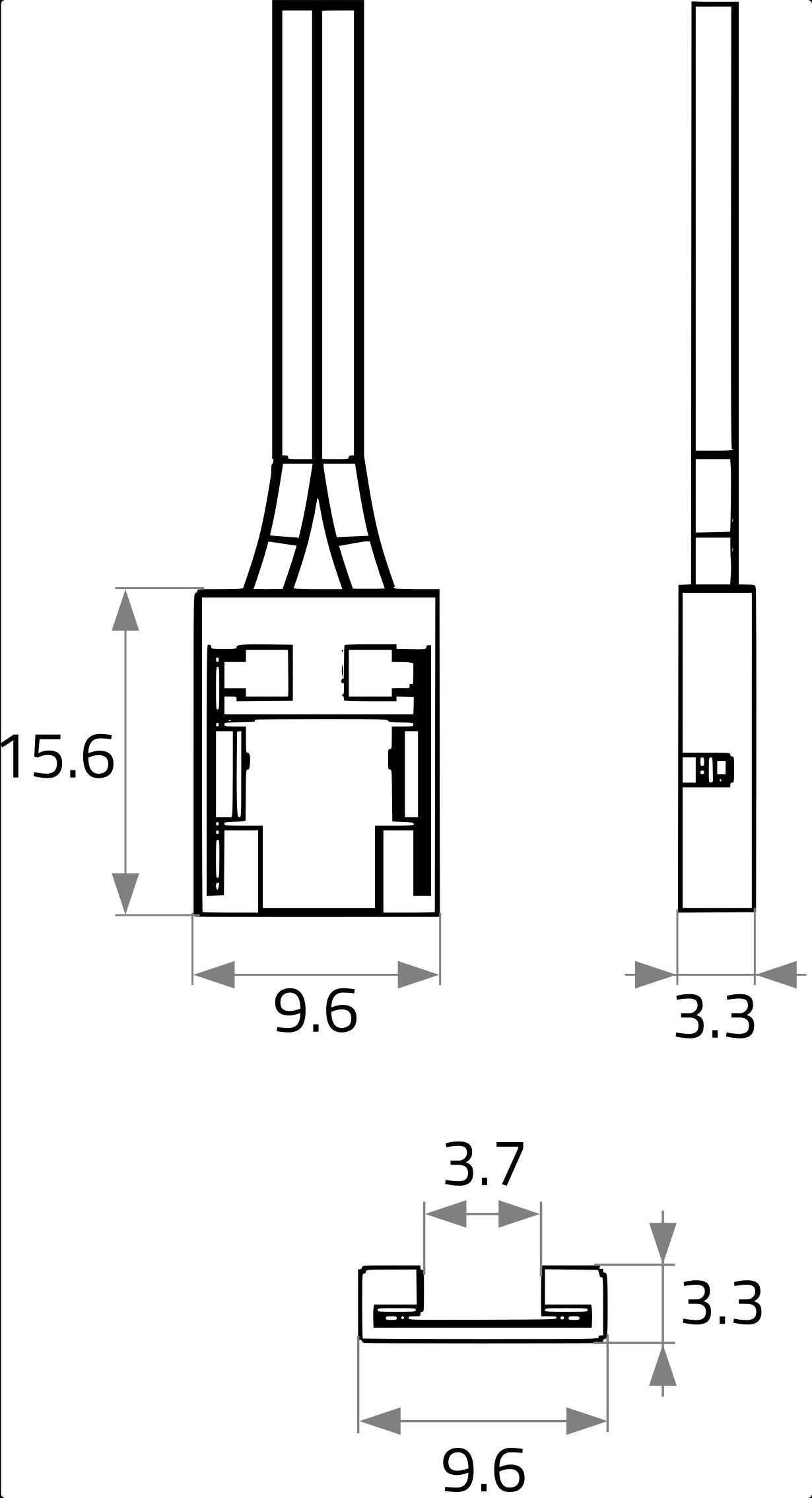

LxWxH in mm: 15.6 x 9.6 x 3.3 · cable 150 mm (2 x 0.5 sq mm) · material: polycarbonate · suitable for following LED strips: · VARDAflex COB Plus: 86332, 86335, 86337, 86338 · VARDAflex Eco: 82414, 82415, 82417, 82418 · VARDAflex Eco Plus: 82434, 82435, 82437, 82438, 82474, 82475, 82477, 82478 · VARDAflex Nova Eco Plus: 82763, 82765, 82768 · VARDAflex Nova Double: 79872 · VARDAflex Standard: 84315, 84317 · only to be used at joints where there is no solder on the contacts. · max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)

Technical data

Unit Code pcs
BAR code 4012094703244
Housing colour ohne
Length 15.60 mm
Width 9.60 mm
Height 3.30 mm
Lamp Ohne
IP rating 20
Current mA 3.500 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
