LED-strips (Indoor/Outdoor) VARDAflex Strips (Indoor)

Accessories for VARDAflex (indoor) 70321

für VARDAflex LED-Strips Einspeisung Gapless Einfarbig 10mm IP20

Article nr.: 70321

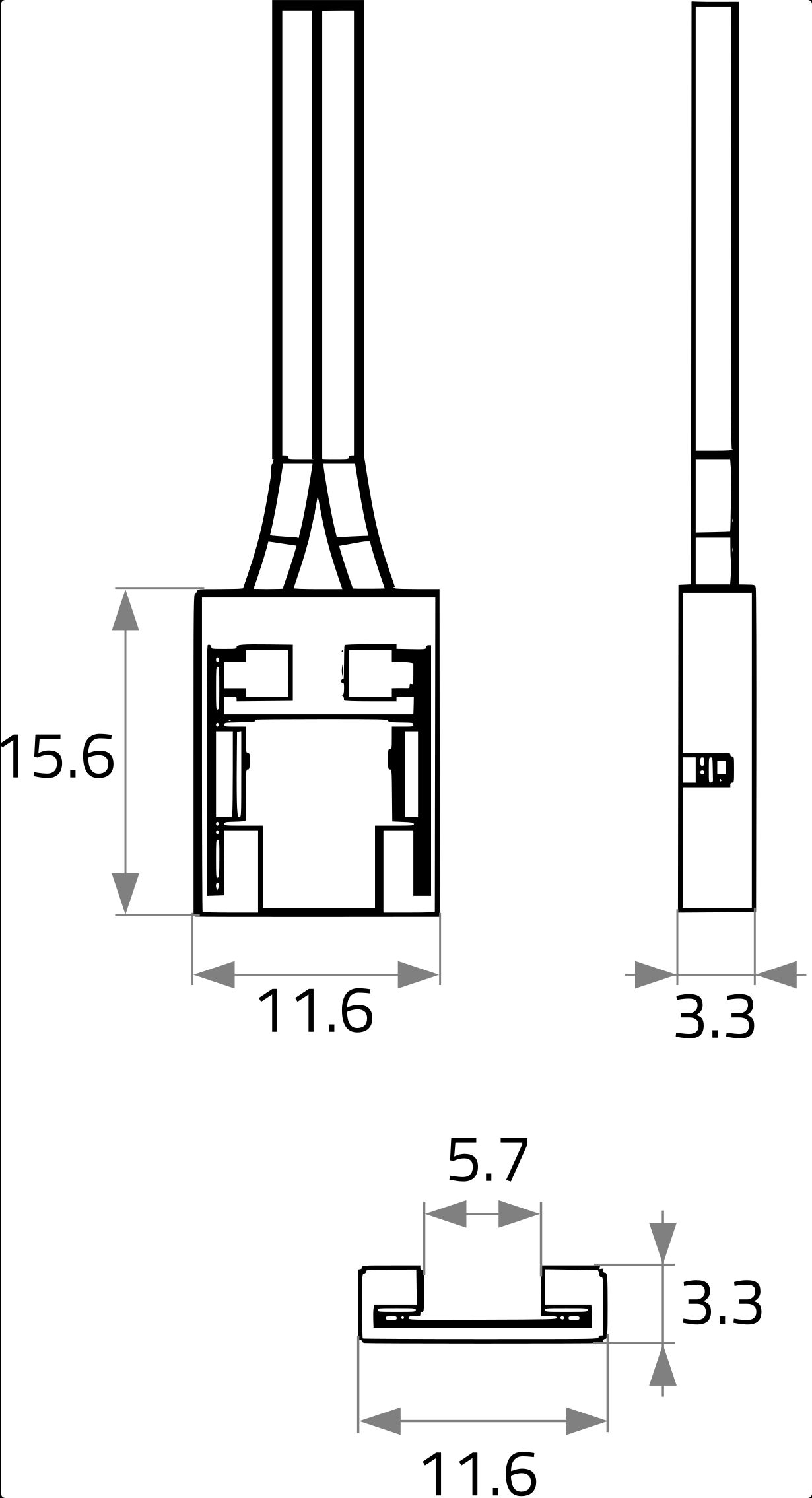

LxWxH in mm: 15.6 x 11.6 x 3.3 · cable 150 mm (2 x 0.5 sq mm) · material: polycarbonate · suitable for following LED strips: · VARDAflex Eco Plus REACH15: 82215-V2, 82217-V2, 82218-V2 · VARDAflex Eco Double: 82454, 82455, 82457, 82458 · VARDAflex Nova Plus: 82861, 82863, 82865, 82868 · VARDAflex Nova Double: 82873, 82875, 82878 · VARDAflex Nova Ultra: 82891, 82893, 82895, 82898, 79892 · VARDAflex Nova Triple: 82881, 82883, 82885, 82888, 79882 · VARDAflex Quantum Plus Profi: 84105, 84107, 84108 · VARDAflex Quantum Triple: 84115, 84117, 84118 · VARDAflex Pro: 71313, 71315 · VARDAflex Duo: 84863, 84865 · VARDAflex Plus DTW: 79141 · VARDAflex Plus Profi DTW: 79040 · only to be used at joints where there is no solder on the contacts.

Technical data

Unit Code pcs
BAR code 4012094703213
Housing colour ohne
Length 15.60 mm
Width 11.60 mm
Height 3.30 mm
Lamp Ohne
IP rating 20
Current mA 3.500 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
