Accessories for VARDAflex (indoor) 70228

für VARDAflex LED-Strips Direktverb. Screw Einf.8mm IP20

Article nr.: 70228

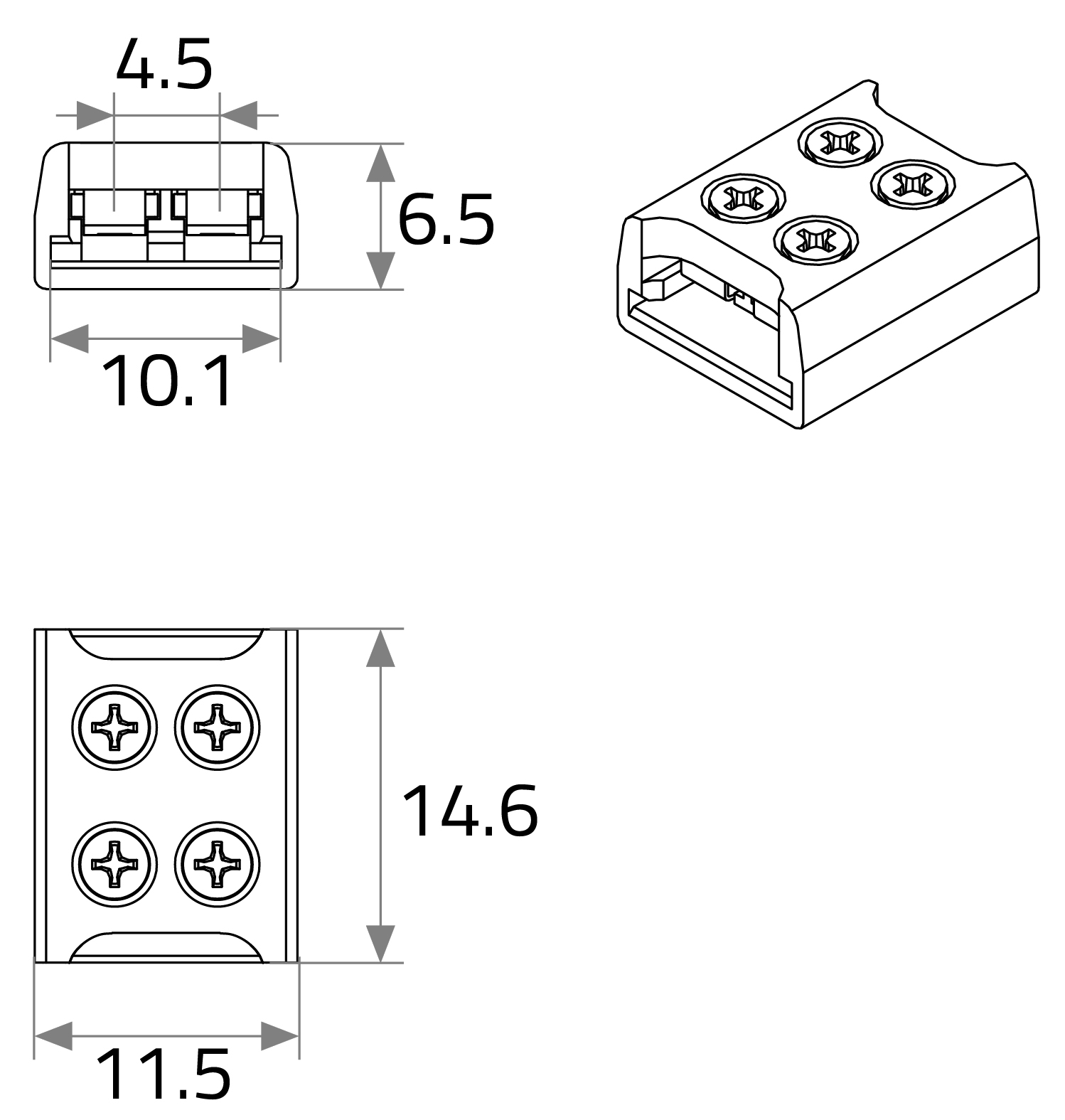

strip to strip connector for single-colour LED strips 8 mm · with screw contacts for safe contacting · max. current carrying capacity: 6 A (12V/72W, 24V/144W) · LxWxH in mm: 13.4 x 11.5 x 6.5 · suitable for the following LED strips: · VARDAflex Eco: 82414, 82415, 82417, 82418 · VARDAflex Nova Eco Plus: 82765, 82768 · VARDAflex Standard: 84315, 84317 · VARDAflex Plus: 86141, 86149, 86439

Technical data

Unit Code pcs
BAR code 4012094702285
Housing colour ohne
Length 14.60 mm
Width 11.50 mm
Height 6.50 mm
Lamp Ohne
IP rating 20
Current mA 6.000 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
