LED-strips (Indoor/Outdoor) VARDAflex Strips (Indoor)

Accessories for VARDAflex (indoor) 70225

für 8mm LED-Strips,einfarbig T/L-Verbinder Screw,IP20

Article nr.: 70225

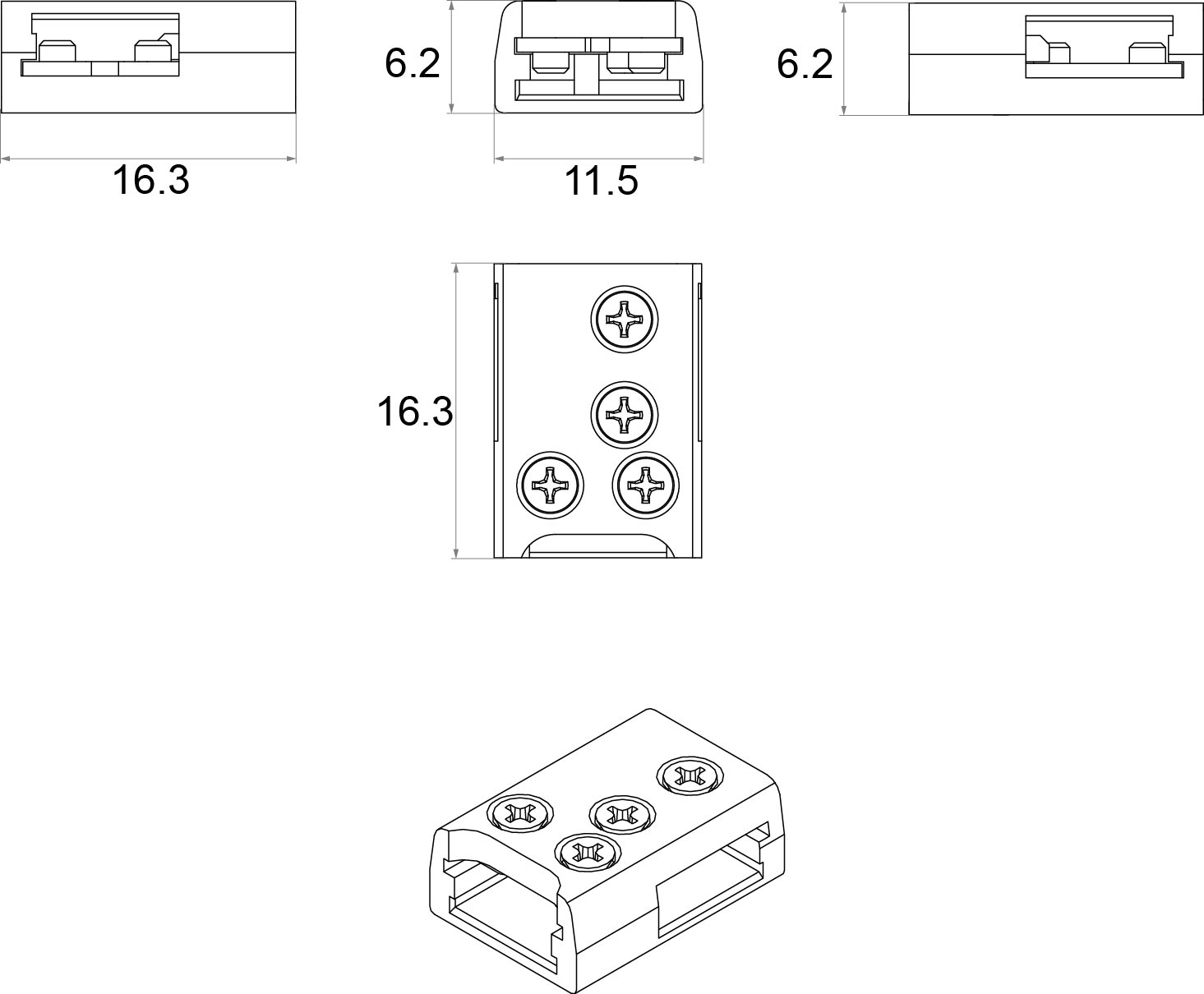

T/L connector for single-colour LED strips 8 mm · with screw contacts for safe contacting · max. current carrying capacity: 6 A (12V/72W, 24V/144W) · LxWxH in mm: 16.3 x 11.5 x 6.2 · suitable for the following LED strips: · VARDAflex Eco: 82414, 82415, 82417, 82418 · VARDAflex Eco Plus: 82474, 82475, 82477, 82478

Technical data

Unit Code pcs
BAR code 4012094702254
Housing colour sonstige
Length 16.30 mm
Width 11.50 mm
Height 6.20 mm
Lamp without
IP rating 20
Current mA 6000 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
Suitable light source
