LED-strips (Indoor/Outdoor) VARDAflex Strips (Indoor)

Accessories for VARDAflex (indoor) 70223

für 10mm LED-Strips,einfarbig T/L-Verbinder Screw,IP20

Article nr.: 70223

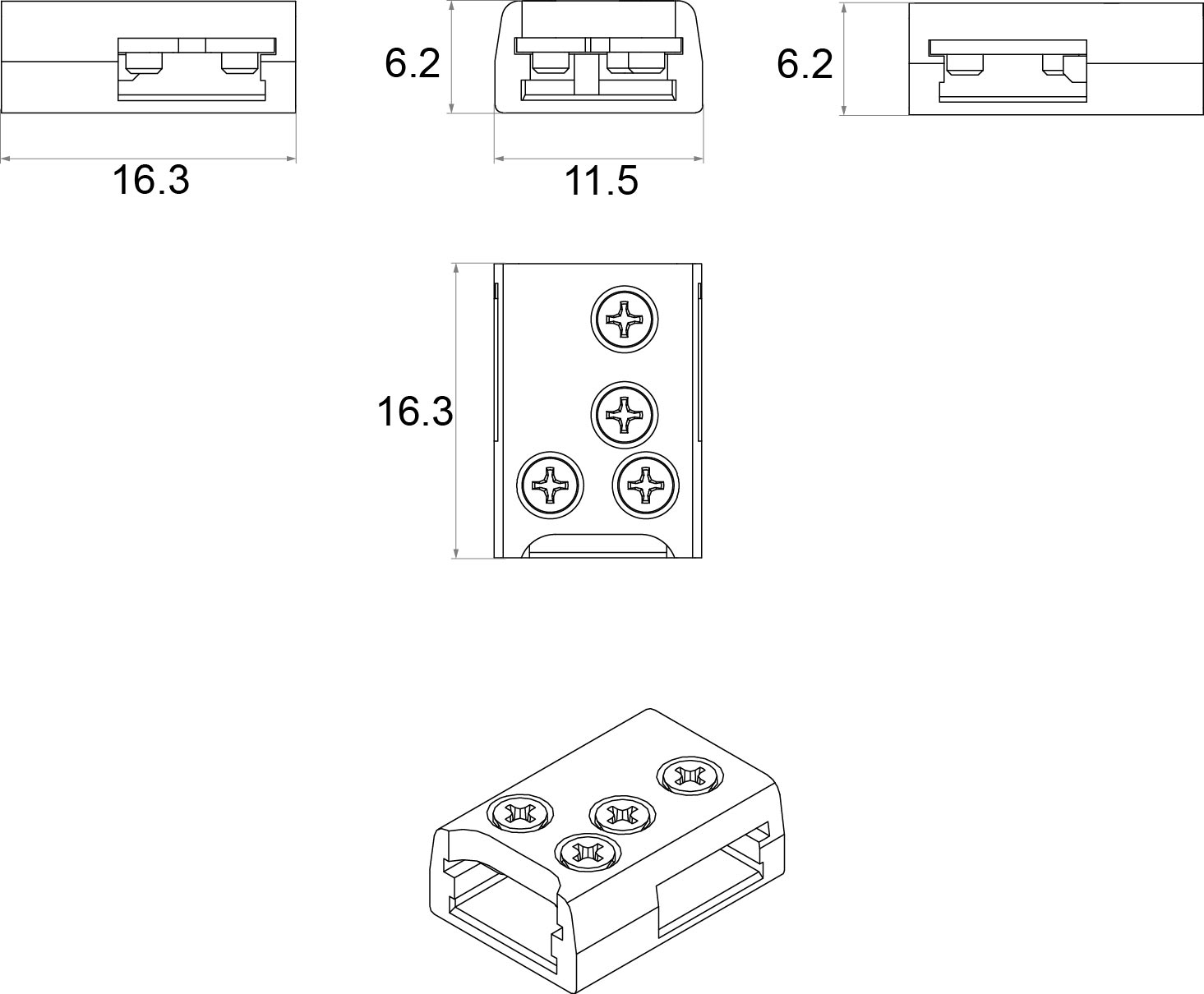

T/L connector for single-colour LED strips 10 mm · with screw contacts for safe contacting · max. current carrying capacity: 6 A (12V/72W, 24V/144W) · LxWxH in mm: 16.3 x 11.5 x 6.2 · suitable for the following LED strips: · VARDAflex Energy: 79465, 79467 · VARDAflex Pro: 71313 · VARDAflex Eco Plus Reach15: 82215-V2, 82217-V2, 82218-V2 · VARDAflex Quantum Plus: 86325, 86327, 86328 · VARDAflex Plus DTW: 79141 · VARDAflex Plus Profi DTW: 79040

Technical data

Unit Code pcs
BAR code 4012094702230
Housing colour sonstige
Length 16.30 mm
Width 11.50 mm
Height 6.20 mm
Lamp without
IP rating 20
Current mA 6000 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
Suitable light source
