LED-strips (Indoor/Outdoor) VARDAflex Strips (Indoor)

Accessories for VARDAflex (indoor) 70124

für 8mm LED-Strips,einfarbig Einspeiser Push Max,IP20

Article nr.: 70124

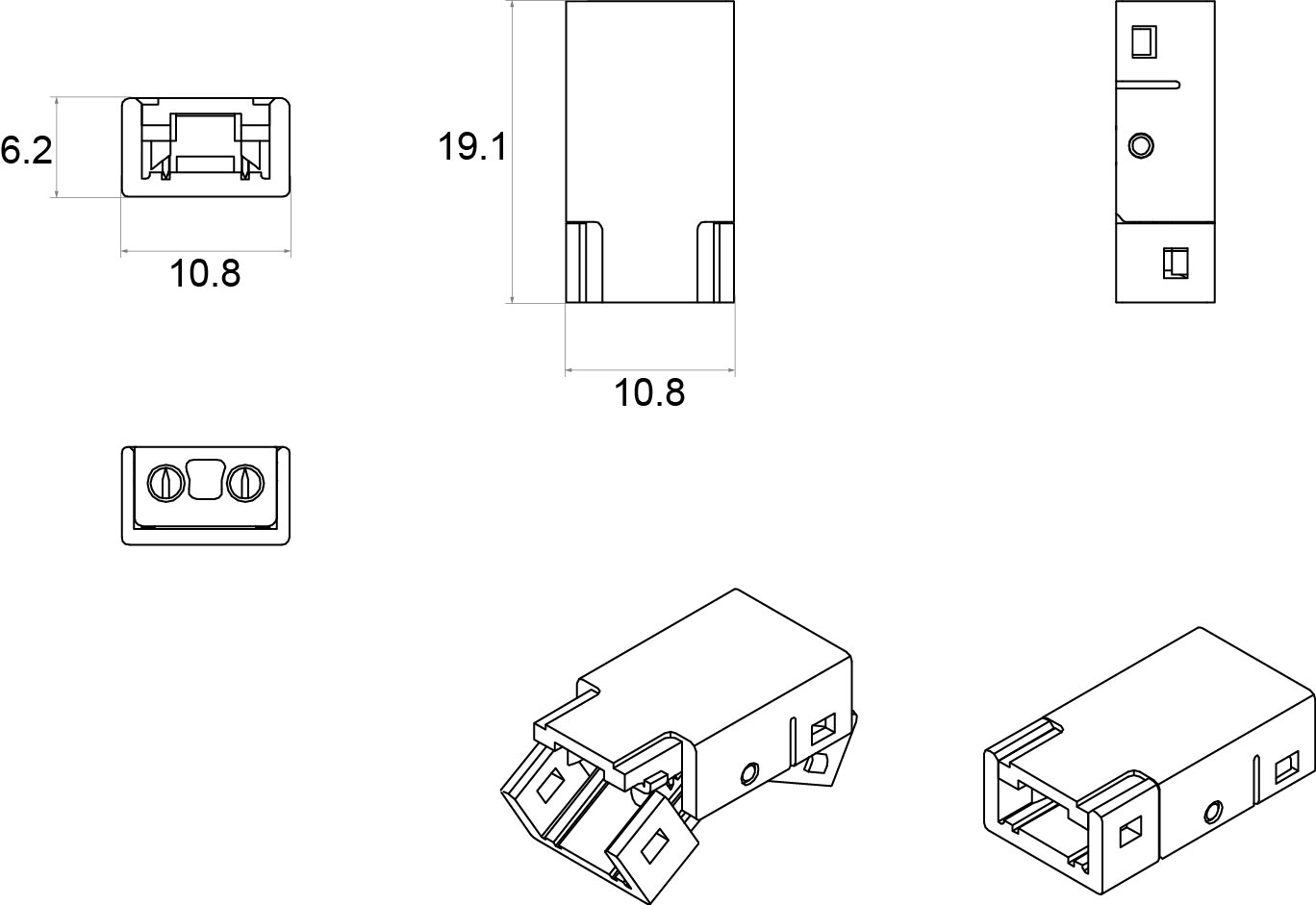

LxWxH in mm: 19.1 x 10.8 x 6.2 · for cable cross-section: 0.5 sq mm · max. current capacity: 5.5 A (12V/66W, 24V/132W, 48V/264W) · Suitable for the following LED strips: · VARDAflex Eco: 82414, 82415, 82417, 82418 · VARDAflex Pro EU: 72005, 72007 · VARDAflex COB Free-Cut: 84365, 84367, 84368 · VARDAflex Eco Plus: 82474, 82475, 82477, 82478 · VARDAflex Pro EU Plus: 72105, 72107 · VARDAflex COB R-to-R Plus: 84335, 84337, 84338

Service

Technical data

Unit Code pcs
BAR code 4012094701240
Housing colour sonstige
Length 19.10 mm
Width 10.80 mm
Height 6.20 mm
Lamp without
IP rating 20
Current mA 5500 mA
Voltage 3-24 V
Material Kunststoff
Temperature range -10 - 45
Suitable light source
