LED recessed downlights COB (Chip On Board) TALAN

48500-V2

LED Downlight TALAN XXS,TRIAC,110°,IP44 weiß,827/830/840,5/7/9W,plug&play

Article nr.: 48500-V2

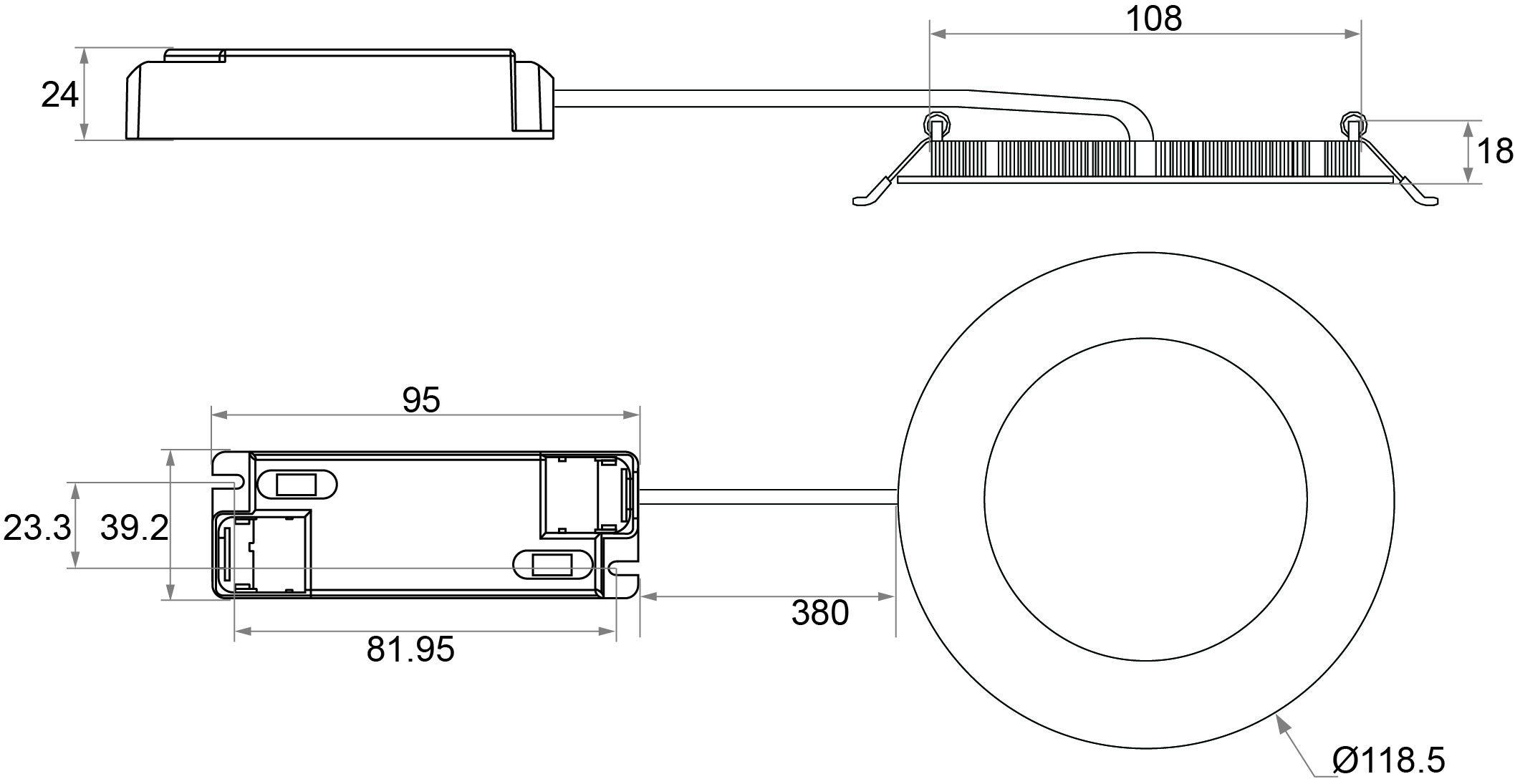

for indoor use, IP44 · with switchable light colour and power on the converter · housing: diecast aluminium, PMMA cover matt · housing colour: white · not swiveling · beam angle: 110° · power: 5/7/9 W · light colour: 2700/3000/4000 K · luminous flux: 470/670/880 lm · CRI: >80 · lifespan L70B50: >= 45,000 h · input voltage range: 220-240 V AC, 50/60 Hz · protection class II · · installation depth: 30 mm · ceiling cut out: 108 mm · outer diameter: 118.5 mm · including TRIAC dimmable constant current converter · with connector for plug-and-play-operation with 380 mm connection cable · tool-free replacement of the lamp · LxWxH constant current converter in mm: 95 x 39.2 x 24 · this product contains a light source of energy efficiency class E · _Driver MOQ 1000 pcs - please add details about quantity to order with reference _TALAN DRIVER 485X_

Technical data

Unit Code pcs
BAR code 4012094485041
Housing colour Weiss
Height 18.00 mm
Outer diameter 118 mm
Hole size 108 mm
Depth in ceiling 30.00 mm
LED colour 2700/3000/4000 K umschaltbar
Lightoutput per fixture 880.00 lm
Lamp including LED
IP rating 44
Power 5-9 W
Voltage 220-240 V
Lamp base ohne
Material Aluminium
Temperature range -10 - 40
CRI ≥ 80
Lifetime L70B50 45.000 h
Lifetime L90B10 36.000 h
Suitable light source
