LED recessed downlights COB (Chip On Board) GAIL

ALU57302DTW

GAIL LED-Einbaustrahler1er Set DimToWarm Plug&play schwenk,rund,300mA,6W,IP40,3-1900K,CRI95-sw

Article nr.: ALU57302DTW

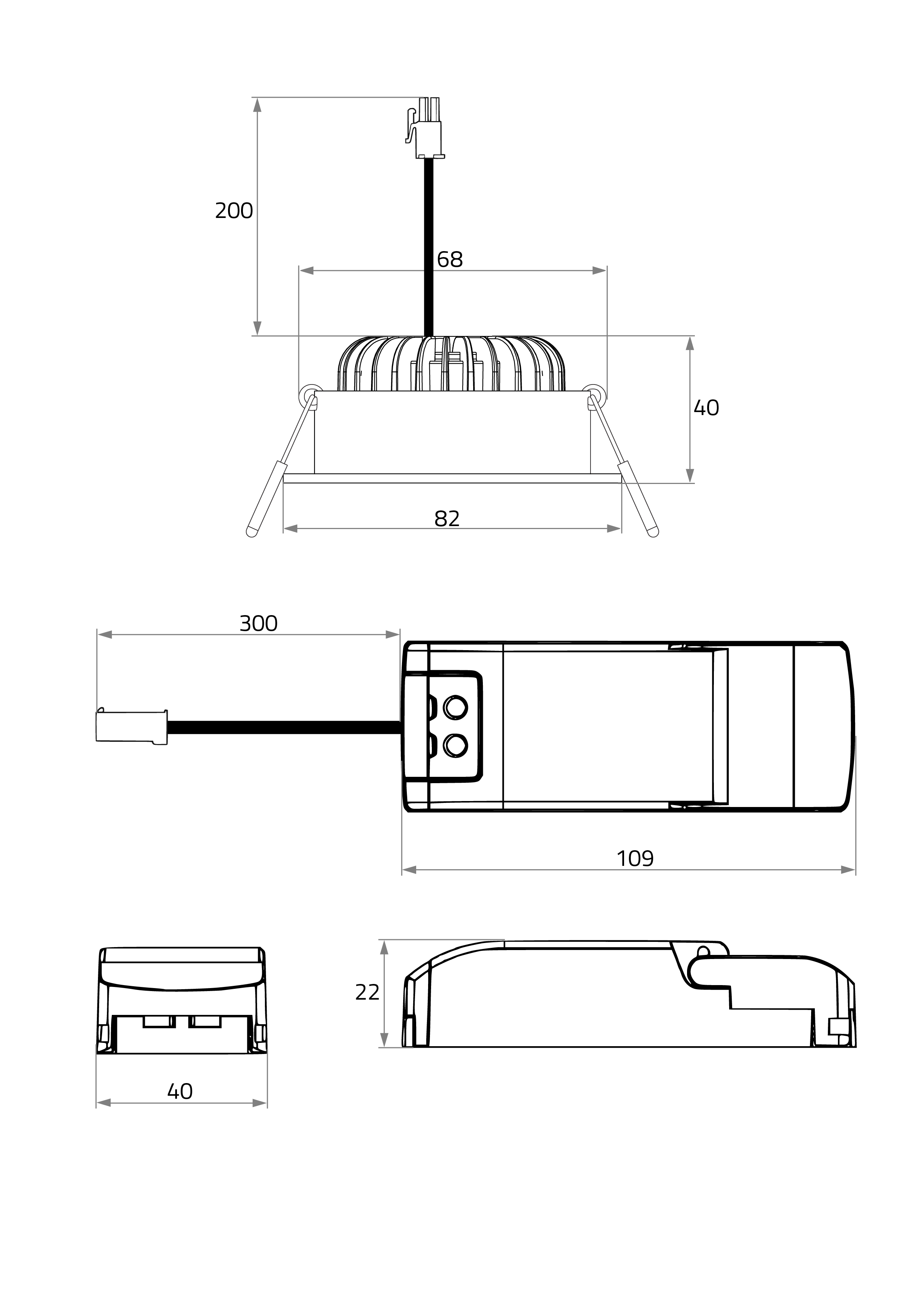

for indoor use, IP40 · · housing: diecast aluminium, PC reflector, transparent plastic cover · housing colour: black · swiveling · beam angle: 36° · power: 6 W · light colour: 3000-1900 K Dim To Warm · luminous flux: 430 lm · CRI: >95 · lifespan L70: >= 55.000 h · input voltage range: 200-264 V AC, 50/60 Hz · protection class II · · installation depth: 45 mm · ceiling cut out: 68 mm · outer diameter: 82 mm · energy efficiency class: A+ · including constant current converter dimmable via phase cut dimmer · with connector for plug-and-play-operation with 450 mm connection cable · tool-free replacement of the lamp · LxWxH constant current converter in mm: 109 x 40 x 22 · MOQ COLORED BOX 2000 PCS · COLORS CAN BE MIXED · ALU5730XDTW

Technical data

Unit Code pcs
BAR code 4012094573021
Housing colour Schwarz
Height 40.00 mm
Outer diameter 82 mm
Hole size 68 mm
Depth in ceiling 45.00 mm
LED colour 3000-1900K DTW
Lightoutput per fixture 430.00 lm
Lamp Inklusive LED
IP rating 40
Power 6 W
Current mA 300 mA
Voltage 220-240 V
Amount of LED 1
Input voltage 200-264
Output voltage 15-30
Material Aluminium
Efficiency 82.00
Temperature range -30 - 85
Energy ffficiency class A+
CRI ≥ 95
