LED recessed downlights COB (Chip On Board) GAIL

ALU57301WWD

GAIL LED-Einbaustrahler 1er Set dimmbar Plug&play schwenkb.,rund,300mA,6W,IP40,3000K,CRI80-weiß matt

Article nr.: ALU57301WWD

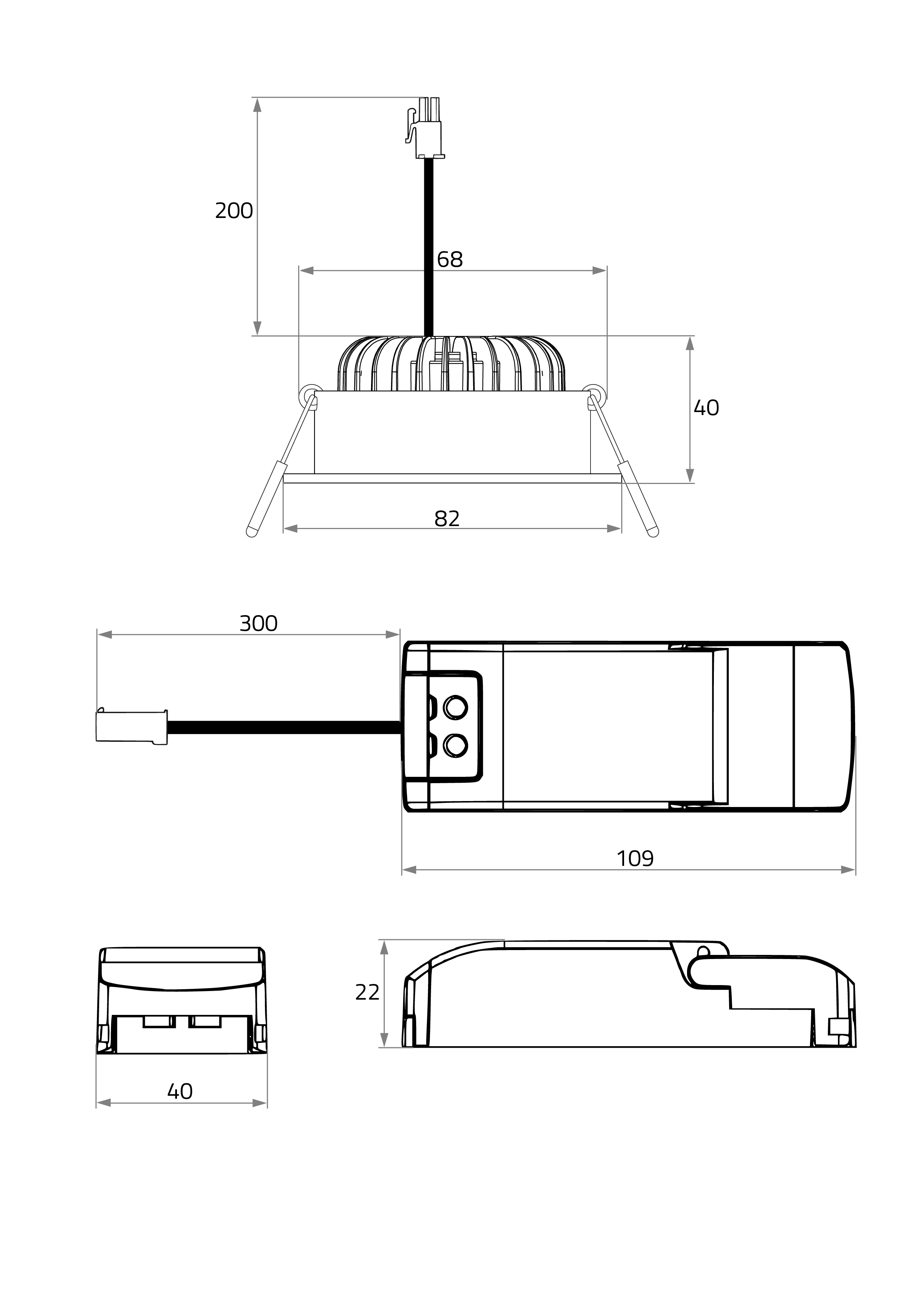

for indoor use, IP40 · · housing: diecast aluminium, PC reflector, transparent plastic cover · housing colour: white · swiveling · beam angle: 36° · power: 6 W · light colour: 3000 K · luminous flux: 718 lm · CRI: >80 · lifespan L70B50: >= 50,000 h · input voltage range: 200-264 V AC, 50/60 Hz · protection class II · · installation depth: 45 mm · ceiling cut out: 68 mm · outer diameter: 82 mm · including constant current converter dimmable via phase cut dimmer · with connector for plug-and-play-operation with 500 mm connection cable · tool-free replacement of the lamp · LxWxH constant current converter in mm: 109 x 40 x 22 · this product contains a light source of energy efficiency class E

Service

Technical data

Unit Code pcs
BAR code 4012094573311
Housing colour Weiss matt
Height 40.00 mm
Outer diameter 82 mm
Hole size 68 mm
Depth in ceiling 45.00 mm
LED colour ca. 3000K warmweiß
Lightoutput per fixture 718.00 lm
Lamp including LED
IP rating 40
Power 6 W
Current mA 300 mA
Voltage 220-240 V
Lamp base ohne
Input voltage 200-264
Output voltage 15-30
Material Aluminium
Efficiency 82.00
Temperature range -30 - 40
CRI ≥ 80
Lifetime L70B50 50.000 h
Suitable light source
