LED recessed downlights COB (Chip On Board) High IP-grade downlights

LED54209WW-V2

220V-240V 50/60Hz CRI80 LARA AC RUND Chrommatt 6W IP44

Article nr.: LED54209WW-V2

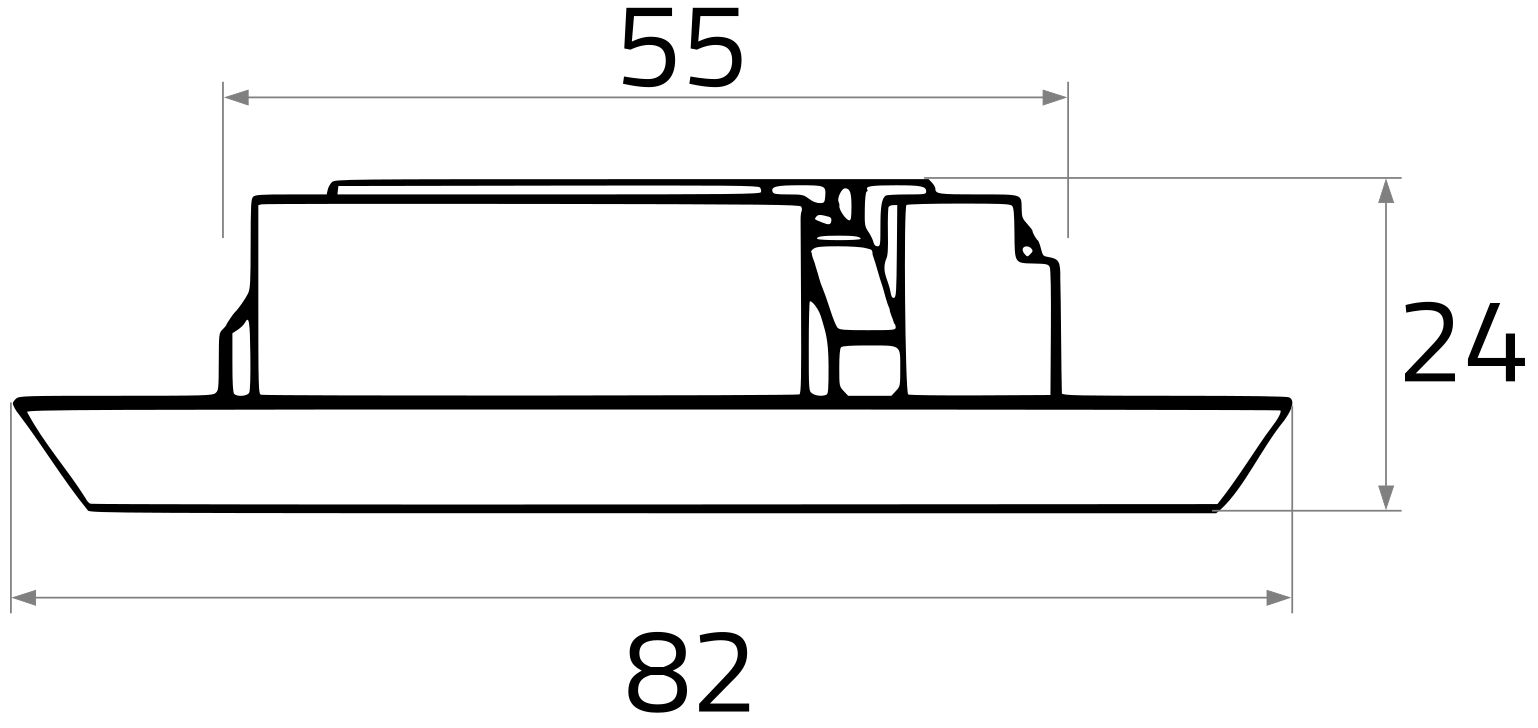

for indoor use, IP 44 · · housing: die-cast aluminum, glass frosted · housing color: chrome matt · not swivelling · beam angle: 95° · power: 6 W · light colour: 3000 K · luminous flux: 519 lm · CRI: >80 · lifespan L70B50: >= 50.000 h · input: 230 V AC · protection class I, MM · · installation depth: 28 mm · installation diameter: 55 mm · outer diameter: 82 mm · energy efficiency class: F · not dimmable · When used in alternating or cross connection, an LED compensator must be used in · parallel with the switching wire

Service

Technical data

Unit Code pcs
BAR code 4012094042091
Housing colour Chrom matt
Height 24.00 mm
Outer diameter 82 mm
Hole size 55 mm
Depth in ceiling 28.00 mm
LED colour ca. 3000K warmweiß
Lightoutput per fixture 519.00 lm
Lamp Inklusive LED
IP rating 44
Furniture downlight 1
Power 6 W
Psb 0,00 W
Current mA 26 mA
Lamp base ohne
Amount of LED 1
Input voltage 220-240
Material Aluminium
Temperature range -20 - 50
Energy ffficiency class EEK-Label_F
CRI ≥ 80
Lifetime L70B50 50.000 h
