Notlichtbetriebsgerät CYRA+ EC25-3031050LI,DC10-50V,3W,220-240V AC
Article nr.: 21980

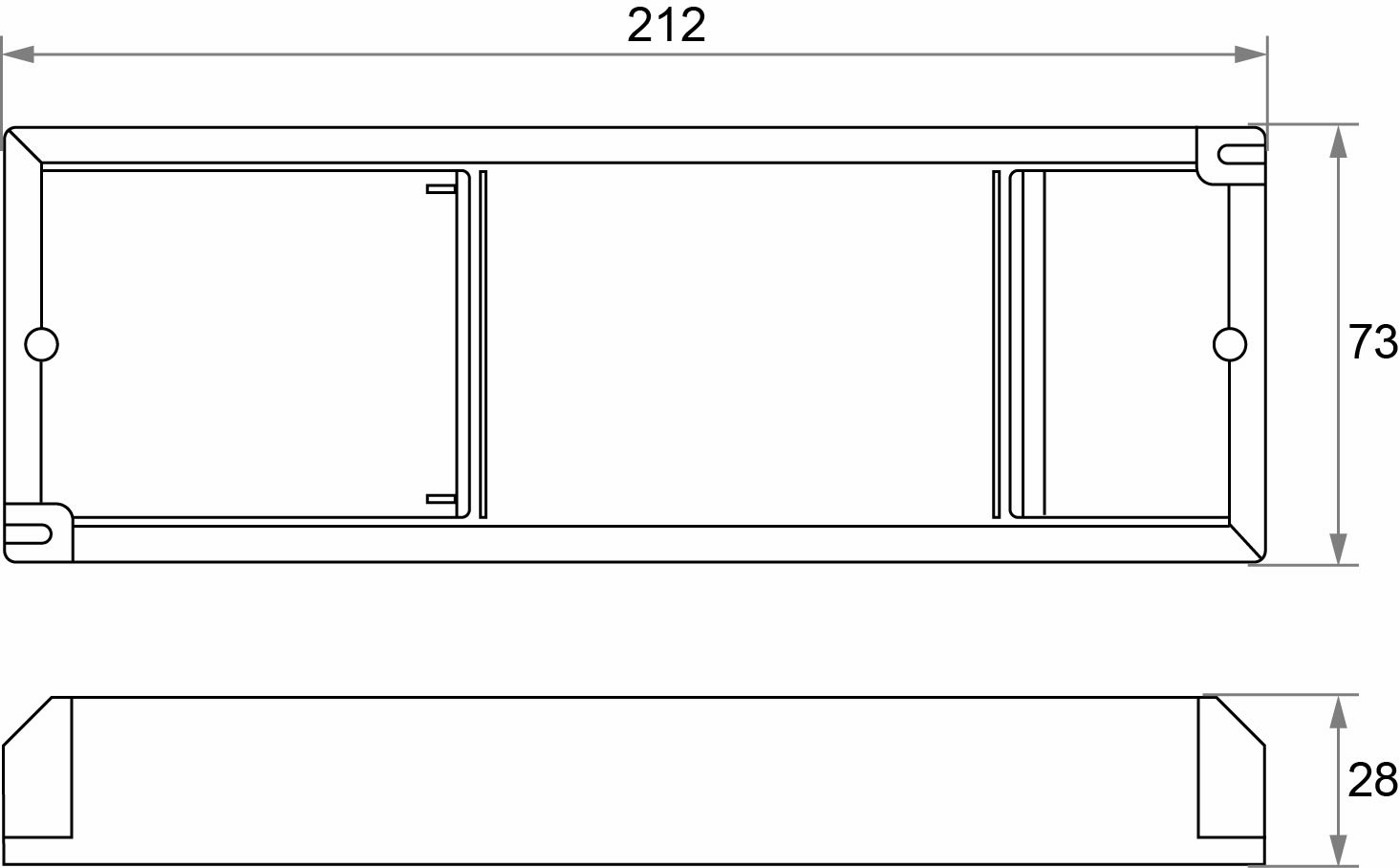

The emergency lighting control unit is a decentralised power supply for emergency · and safety. In the event of a failure in the mains power supply, the battery integrated into the · unit automatically takes over the power supply and ensures that escape and evacuation routes remain · illuminated. · · input voltage: 220-240 V AC, 50/60 Hz · emergency output voltage: 10-50 V DC, max. 55 V (SELV) · emergency power: 3 W (constant power) · emergency operating time: >3 h · battery type: LiFePO4 6.4V 2.2Ah · capacity: 2200 mAh · protection against short circuit, overload and open circuit · protection rating: IP20 · protection class II, CE, SELV, REACH, RoHS · operating temperature: 0°C to +50°C · primary and secondary sides with plug-in terminals for 0.5 - 1.5 sqmm · housing: plastic · LxWxH in mm: 212 x 73 x 28
