LED recessed downlights COB (Chip On Board) CYRA+

21973

Zubehör CYRA+ CC30W300-900CG DALI/1-10V

Article nr.: 21973

1-10V/DALI-2/push dimming actuator AC · 1 address 1 channel single colour · DALI address automatically addressable from · DALI master controller (e.g. gateway) · According to DALI standard protocol IEC62386-102, IEC62386-207 · suitable for commercially available DALI devices · 1-10V, DALI-2 or push dim function · for indoor use, IP20 · input voltage: 220-240 V AC 50/60 Hz · Output current (300-900 mA) adjustable via dip-switch in 50 mA steps · power: 2.7-30.6 watts depending on ouput current (see manual) · DALI device type: DT6 · protection class II, CE, ROHS · protection against short circuit, overload, overvoltage and overtemperature · dimming range: 0-100 % (push.dimming & DALI), 2-100% (1-10V) · temperature range: -25 °C to +50 °C · LxWxH in mm: 103 x 67 x 22

Service

Technical data

Unit Code pcs
BAR code 4012094219738
Housing colour Weiss

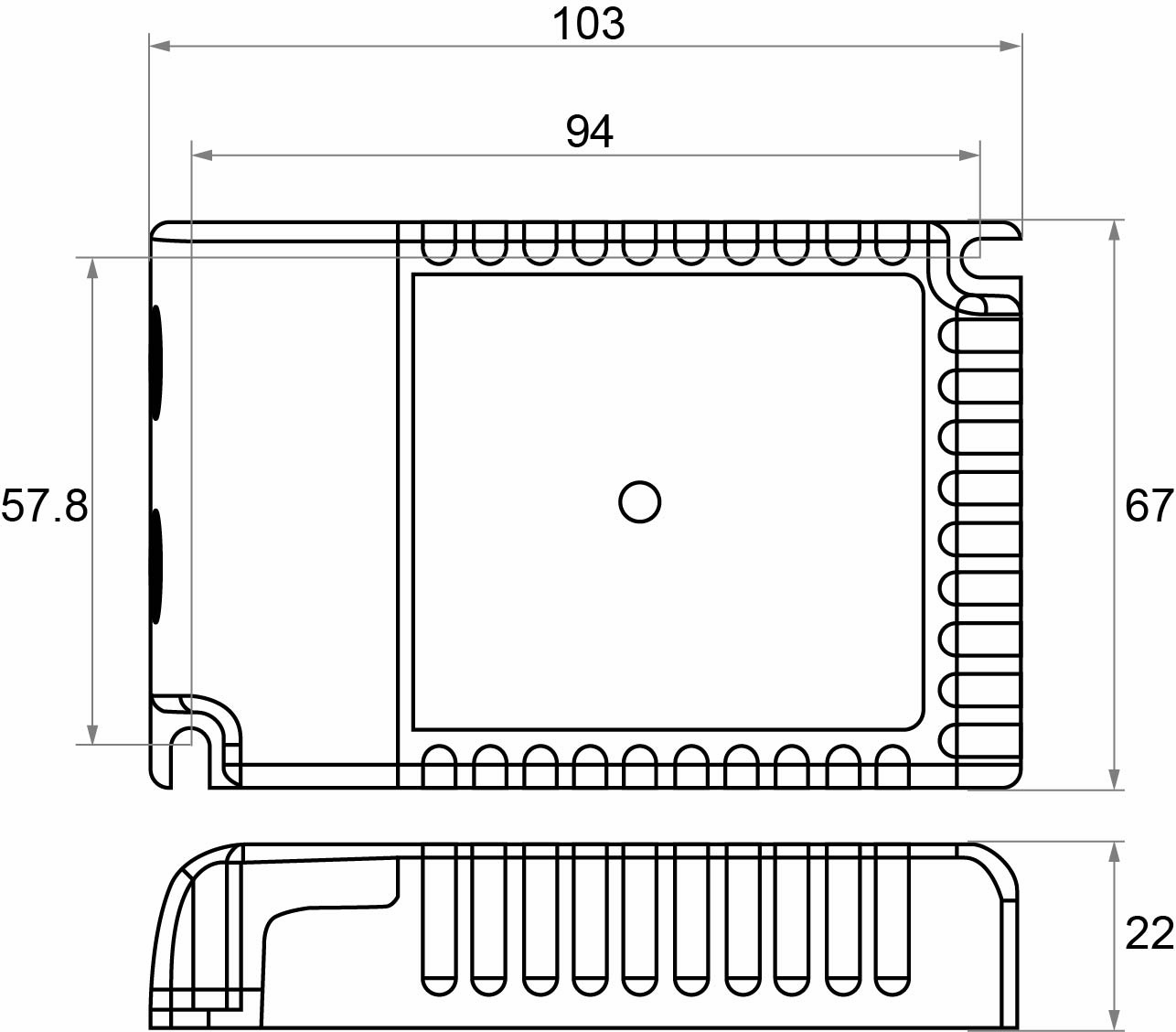

Length 103.00 mm
Width 67.00 mm
Height 22.00 mm
Lamp without
IP rating 20
Power 2,7-30,6 W
Pno <0,5 W
Current mA 300-900 mA
Input voltage 220-240
Output voltage 9-58
Material Kunststoff
Tollerance 5.00
Temperature range -25 - 50
Suitable light source LED
