LED Funk Controller 80575

Funksender, steuerbar über externen Taster Funksender 2-Kanal, Einfarbig/UP

Article nr.: 80575

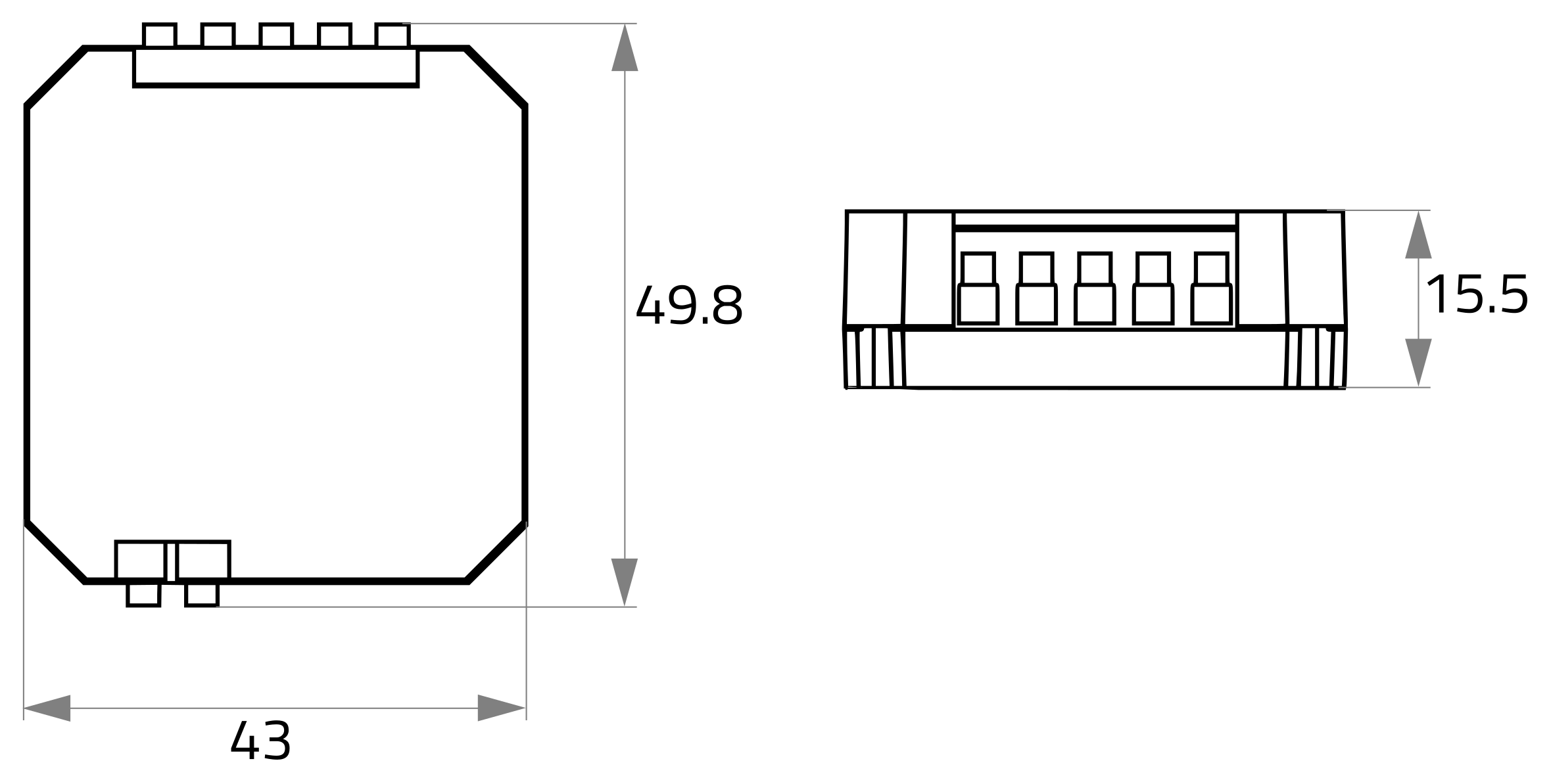

the rutec flush-mounted radio transmitter 2-channel has 2 zones for single · colour control · it can be operated with conventional pushbuttons or series pushuttons and can · therefore be integrated into any switch programme · the transmitter can be installed behind the push-button in a switch box with · sufficient space · for indoor use, IP20 · material: plastic · CE, REACH, RoHS · input voltage: 100-240V AC · suitable wire cross-section at push terminals: 0.5 - 1.5 sq mm · range: 30 metres (in clear view) with 70 mm antenna · transmitting frequency: 868 MHz · dimming range: 0.1 - 100% · with memory effect · LxWxH in mm: 49.8 x 43 x 15.5 · independent control of up to 2 zones · dimming and switching of single-coloured luminaires · up to 8 radio transmitter can be stored per radio receiver

Technical data

Unit Code pcs
BAR code 4012094805757
Housing colour Blau
Length 49.80 mm
Width 43.00 mm
Height 15.50 mm
Lamp Ohne
IP rating 20
Input voltage 100-240
Material Kunststoff
Temperature range -20 - 50
