rutec LED power supplies - constant voltage 85458

WITH PFC ACTIV 100-240V AC LED-Netzgerät 24V 600W IP67

Article nr.: 85458

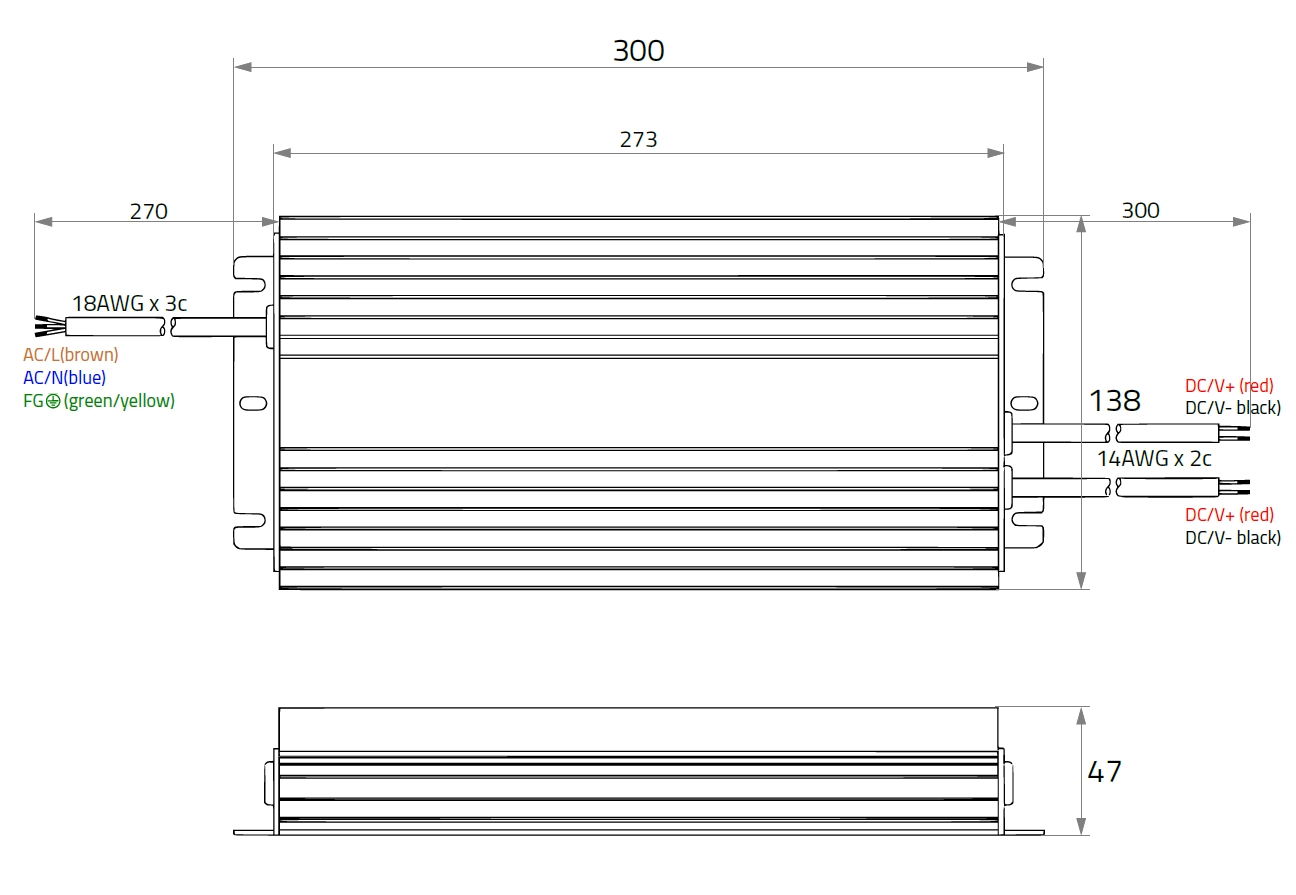

rutec LED power supply, constant voltage · for indoor and outdoor use, IP67 · · built-in active power factor correction (active PFC) · protection class I, SELV, MM, CE, REACH, RoHS · protection against short circuit, overload and overtemperature · primary sided 1 input and secondary sided 2 output line · housing: aluminum · input voltage: 100-240V AC · power: 600 watt · output current: 25 A · output voltage: 24 Volt · LxWxH in mm: 300 x 138 x 47 · temperature range: -30 to +50°C · not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094854588
Housing colour Aluminium
Length 300.00 mm
Width 138.00 mm
Height 47.00 mm
Lamp Ohne
IP rating 67
Power 600 W
Psb 0,00 W
Pno 0,45 W
Current mA 25.000 mA
Input voltage 100-240
Output voltage 24
Material Aluminium
Tollerance 5.00
Temperature range -30 - 50
Suitable light source LED
