LED Power supplies and Controllers LED Power supplies and converter

rutec LED power supplies - constant voltage 85278

200-240V AC Schraubanschluss Netzgerät 24V 150W IP20

Article nr.: 85278

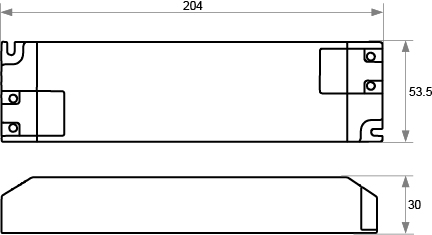

rutec power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV, active PFC · protection against short circuit, over current, over voltage and over temperature · cable cross-section connection terminals: 0.75 - 1.5 sq mm · housing: plastic · input voltage: 100-240 V AC · power: 150 W · output current: 6.25 A · output voltage: 24 V DC · LxWxH in mm: 204 x 53.5 x 30 · temperature range: -20 to +45°C · not dimmable on primary side

Technical data

Unit Code pcs
BAR code 4012094852782
Housing colour Blau
Length 204.00 mm
Width 53.50 mm
Height 30.00 mm
Lamp Ohne
IP rating 20
Power 150 W
Psb 0,00 W
Pno 0,24 W
Current mA 6.250 mA
Voltage 24 V
Input voltage 200-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Temperature range -20 - 45
Suitable light source LED
