rutec LED power supplies - constant voltage 85275

100-240V AC Schraubanschluss LED-Netzgerät 24V 24W IP20

Article nr.: 85275

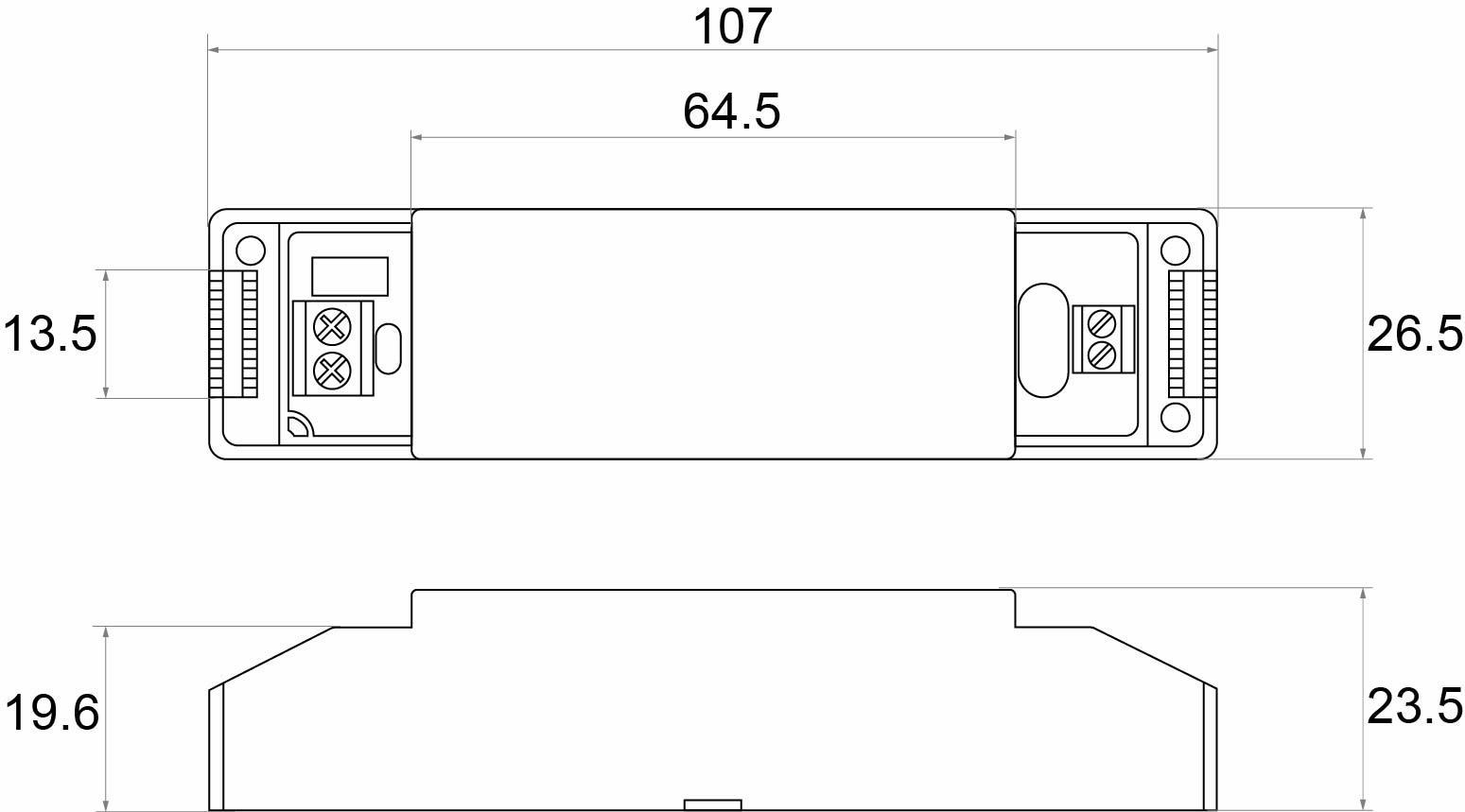

rutec LED power supply, constant voltage · For indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · Protection against short circuit and overload · Cable cross-section screw terminals: 0.5 - 1.5 sq mm · Housing: plastic · Input voltage: 100-240 V AC · Power: 24 W · Output current: 1 A · Output voltage: 24 V DC · LxWxH in mm: 107 x 26.5 x 23.5 · Temperature range: -30 to +50°C · Not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094852751
Housing colour Blau
Length 107.00 mm
Width 26.50 mm
Height 23.50 mm
Lamp without
IP rating 20
Power 24 W
Psb 0,00 W
Pno <0,5 W
Current mA 1000 mA
Input voltage 100-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Temperature range -30 - 50
Suitable light source LED
