LED Power supplies and Controllers LED Power supplies and converter

rutec LED power supplies - constant voltage 85274

100-240V AC Schraubanschluss Netzgerät 24V 100,8W IP20

Article nr.: 85274

rutec power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV, active PFC · protection against short circuit, over current and over temperature · cable cross-section connection terminals: 0.75 - 2.5 sq mm · housing: plastic · input voltage: 100-240 V AC · power: 100,8 W · output current: 4.2 A · output voltage: 24 V DC · LxWxH in mm: 204 x 53.5 x 30 · temperature range: -20 to +45°C · not dimmable on primary side

Technical data

Unit Code pcs
BAR code 4012094852744
Housing colour Blau

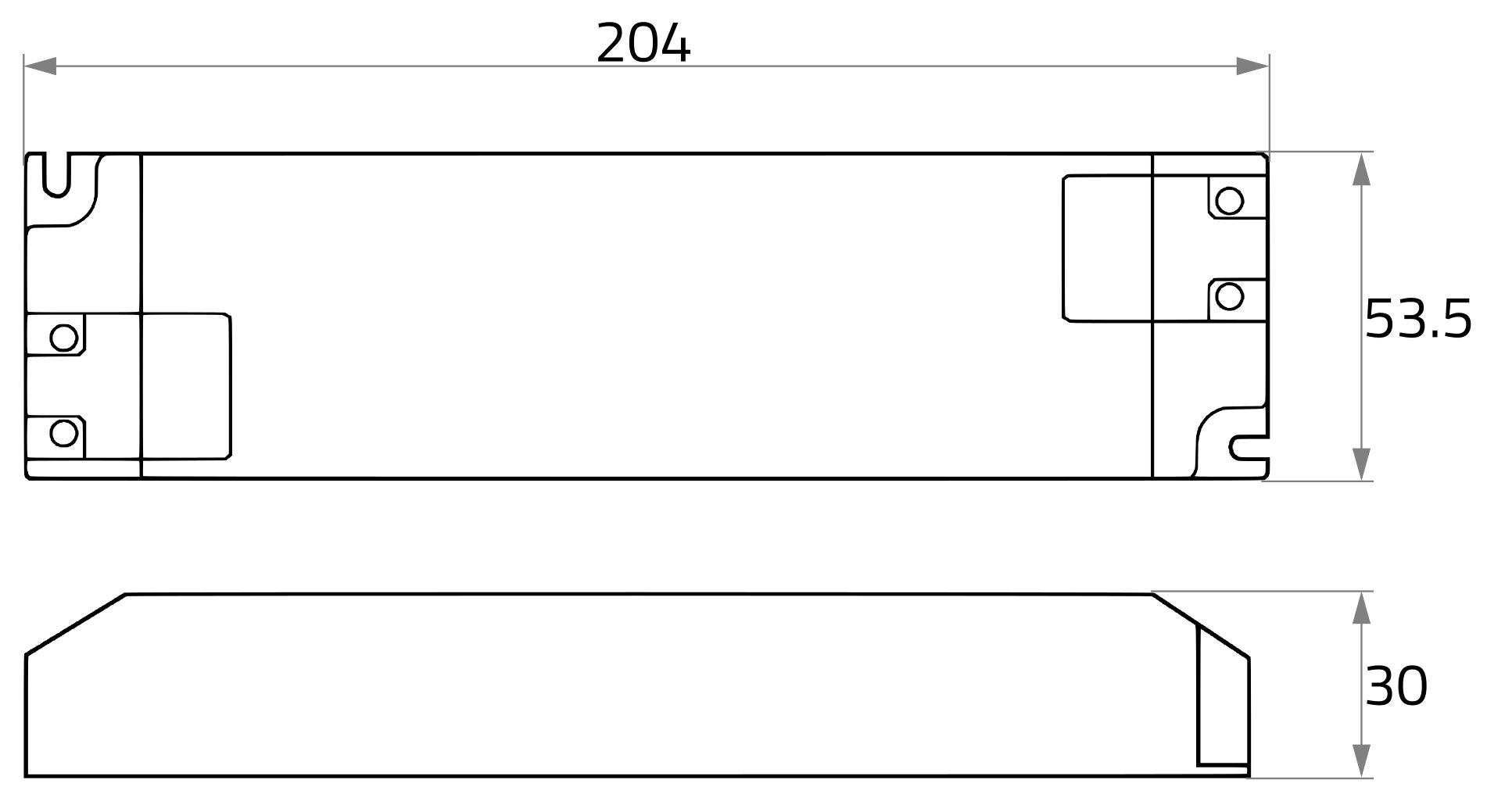

Length 204.00 mm
Width 53.50 mm
Height 30.00 mm
Lamp Ohne
IP rating 20
Power 100,8 W
Psb 0,00 W
Pno 0,8 W
Current mA 4,2 mA
Input voltage 100-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Temperature range -20 - 45
Suitable light source LED

Not suitable for idle condition
