rutec LED power supplies - constant voltage 85272-V2

100-240V AC Schraubanschluss LED-Netzgerät 24V 60W IP20

Article nr.: 85272-V2

rutec LED power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · protection against short circuit, over current and over temperature · cable cross-section connection terminals: 0.5 - 1.5 sq mm · housing: plastic · input voltage: 100-240 V AC · power: 60 W · output current: 2.5 A · output voltage: 24 V DC · LxWxH in mm: 176 x 46 x 30 · temperature range: -20 to +45°C · not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094252728
Housing colour Blau

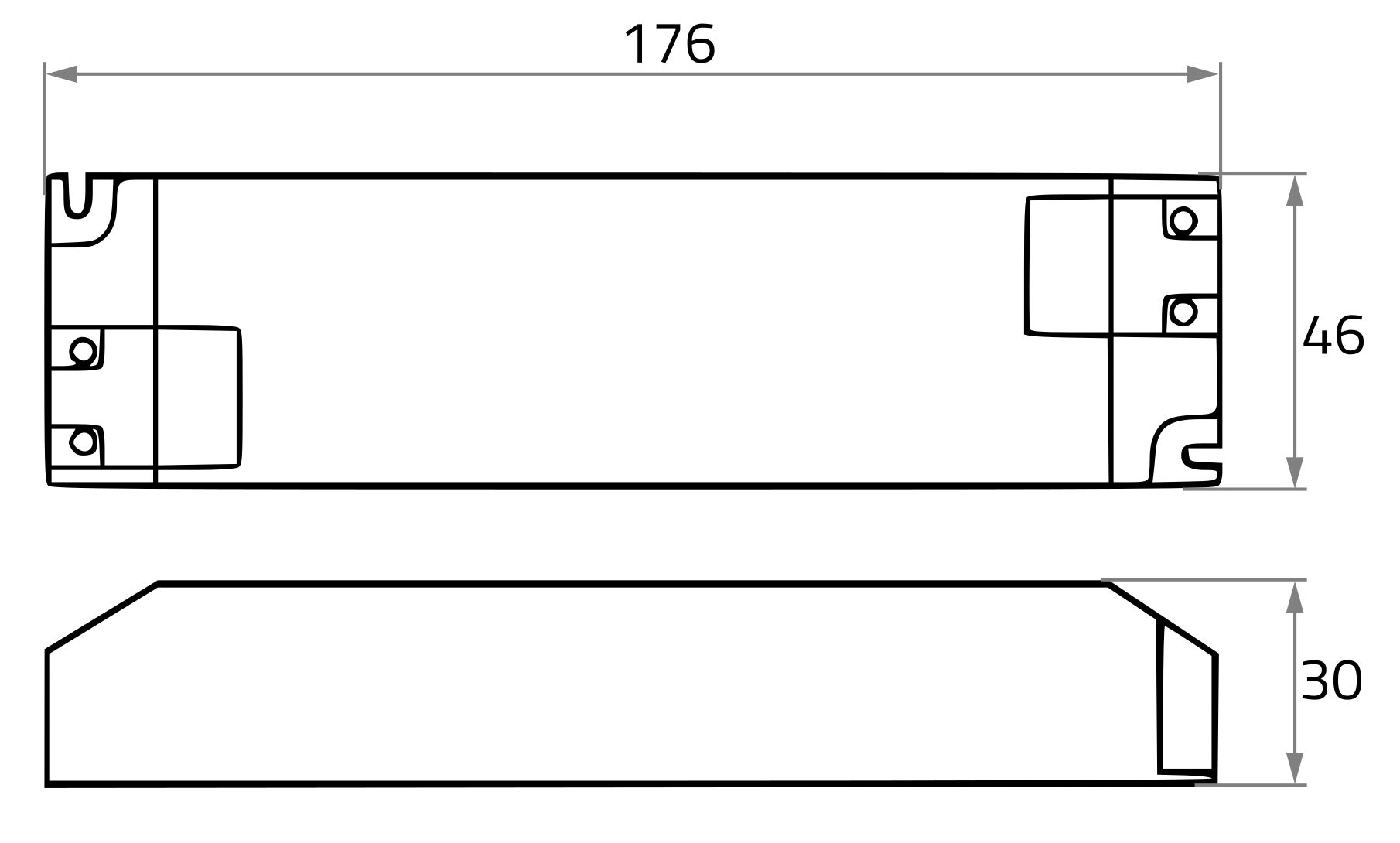

Length 176.00 mm
Width 46.00 mm
Height 30.00 mm
Lamp Ohne
IP rating 20
Power 60 W
Psb 0,0 W
Pno 0,36 W
Current mA 2.500 mA
Input voltage 100-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Temperature range -20 - 45
Suitable light source LED
