LED Power supplies and Controllers LED Power supplies and converter

rutec LED power supplies - constant voltage 85271

100-240V AC Schraubanschluss LED-Netzgerät 24V 36W IP20

Article nr.: 85271

rutec LED power supply, constant voltage · For indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · Protection against short circuit, over current and over temperature · Cable cross-section connection terminals: 0.5 - 1.5 sq mm · Housing: plastic · Input voltage: 100-240 V AC · Power: 36 W · Output current: 1.5 A · Output voltage: 24 V DC · LxWxH in mm: 96 x 44.5 x 30 · Temperature range: -20 to +40°C · Not dimmable on primary side

Technical data

Unit Code pcs
BAR code 4012094852713
Housing colour Blau

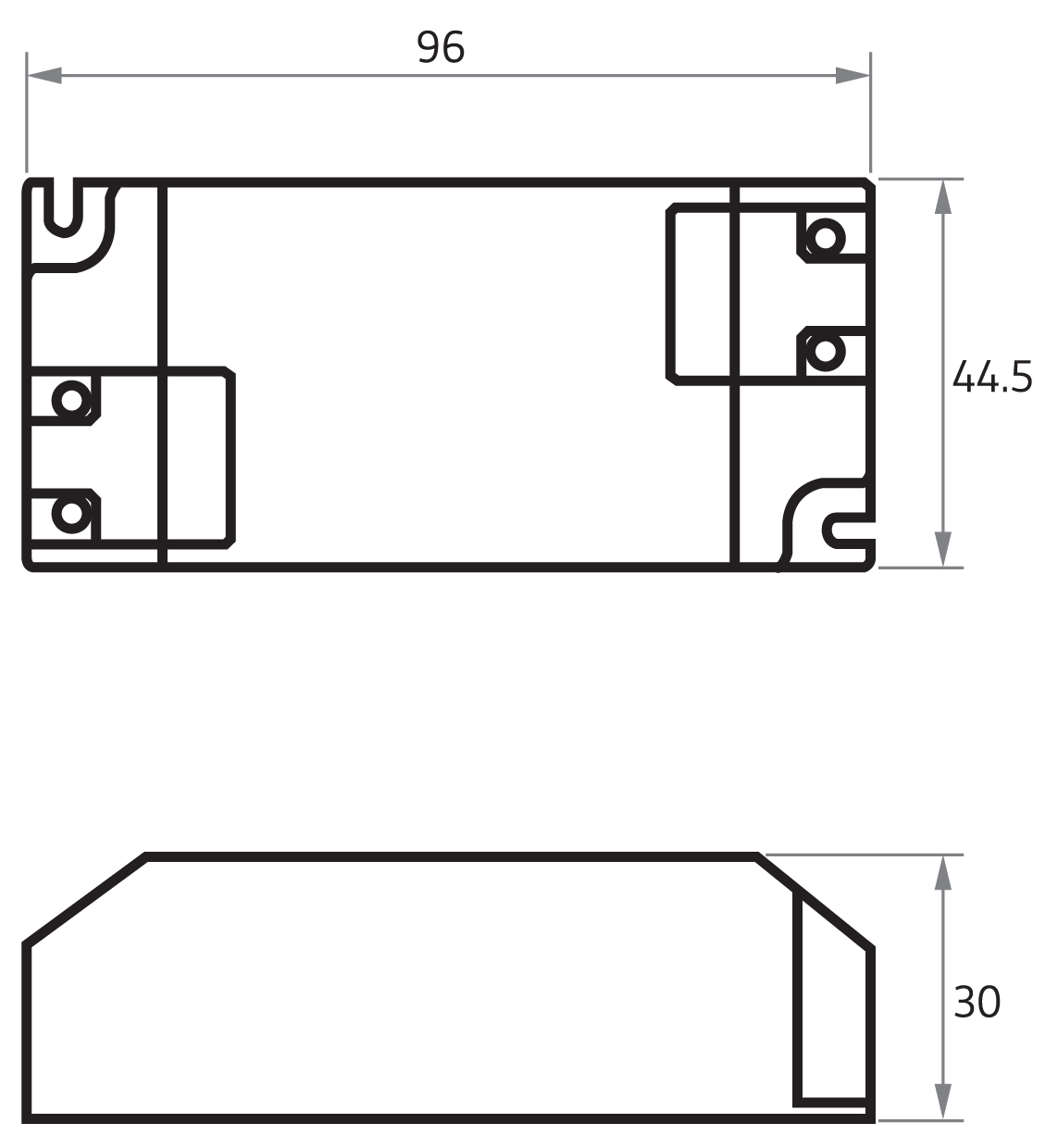

Length 96.00 mm
Width 44.50 mm
Height 30.00 mm
Lamp Ohne
IP rating 20
Power 36 W
Current mA 1.500 mA
Input voltage 100-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Efficiency 85.00
Temperature range -20 - 40
