rutec LED power supplies - constant voltage 85269-V2

100-240V AC Schraubanschluss LED-Netzgerät 12V 60W IP20

Article nr.: 85269-V2

rutec LED power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV, active PFC · protection against short circuit, over current and over temperature · cable cross-section screw terminals: 0.5 - 1.5 sq mm · housing: plastic · input voltage: 100-240 V AC · power: 60 W · output current: 5 A · output voltage: 12 V DC · LxWxH in mm: 176 x 46 x 30 · temperature range: -20 to +45°C · not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094252698
Housing colour Blau

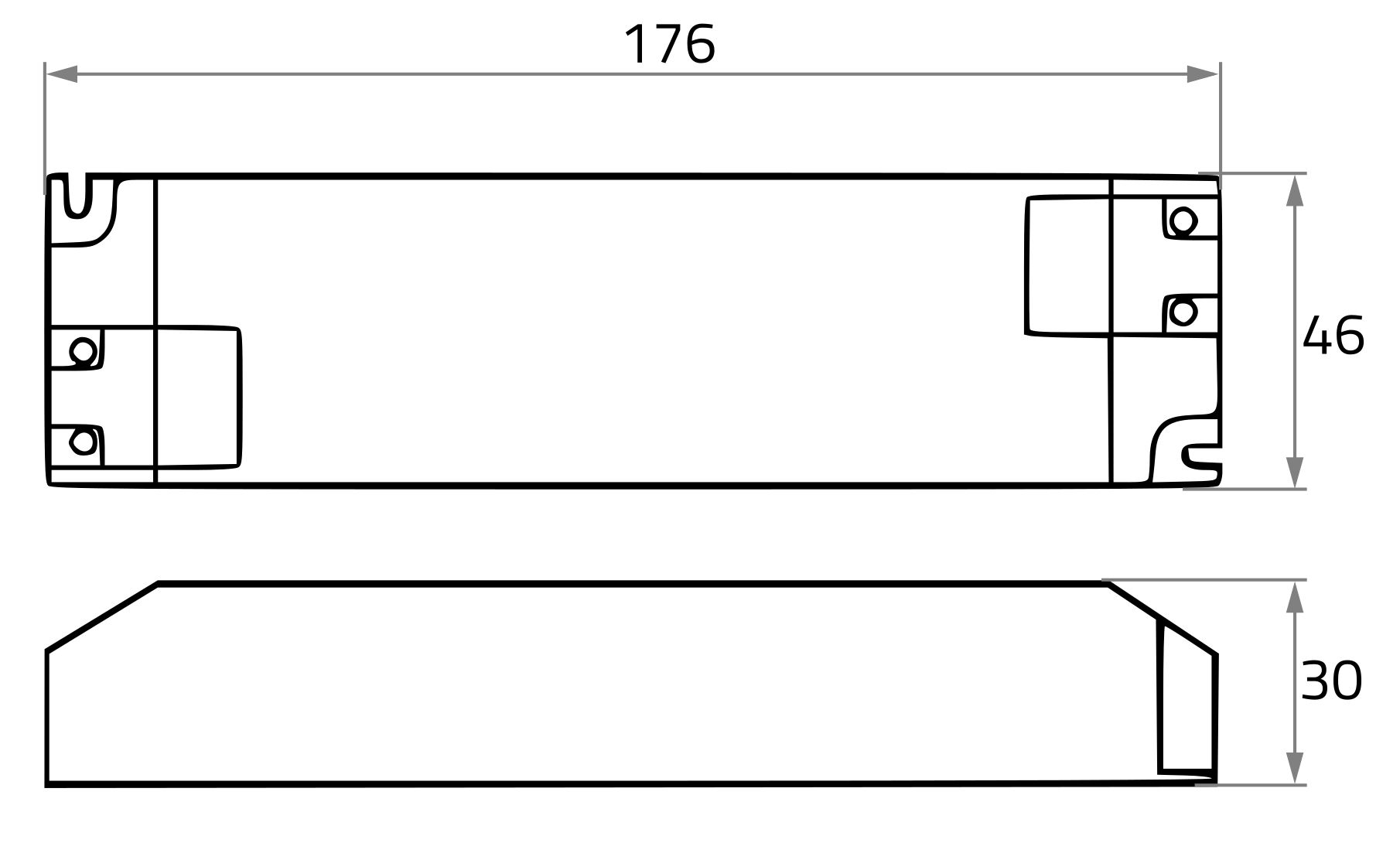

Length 176.00 mm
Width 46.00 mm
Height 30.00 mm
Lamp Ohne
IP rating 20
Power 60 W
Psb 0,00 W
Pno 0,35 W
Current mA 5.000 mA
Input voltage 100-240
Output voltage 12
Material Kunststoff
Tollerance 5.00
Temperature range -20 - 45
Suitable light source LED
