rutec LED power supplies - constant voltage 85265

100-240V AC Schraubanschluss LED-Netzgerät 12V 24W IP20

Article nr.: 85265

rutec LED power supply, constant voltage · For indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · Protection against short circuit and overload · Cable cross-section screw terminals: 0.5 - 1.5 sq mm · Housing: plastic · Input voltage: 100-240 V AC · Power: 24 W · Output current: 2 A · Output voltage: 12 V DC · LxWxH in mm: 107 x 26.5 x 23.5 · Temperature range: -30 to +50°C · Not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094852652
Housing colour Blau

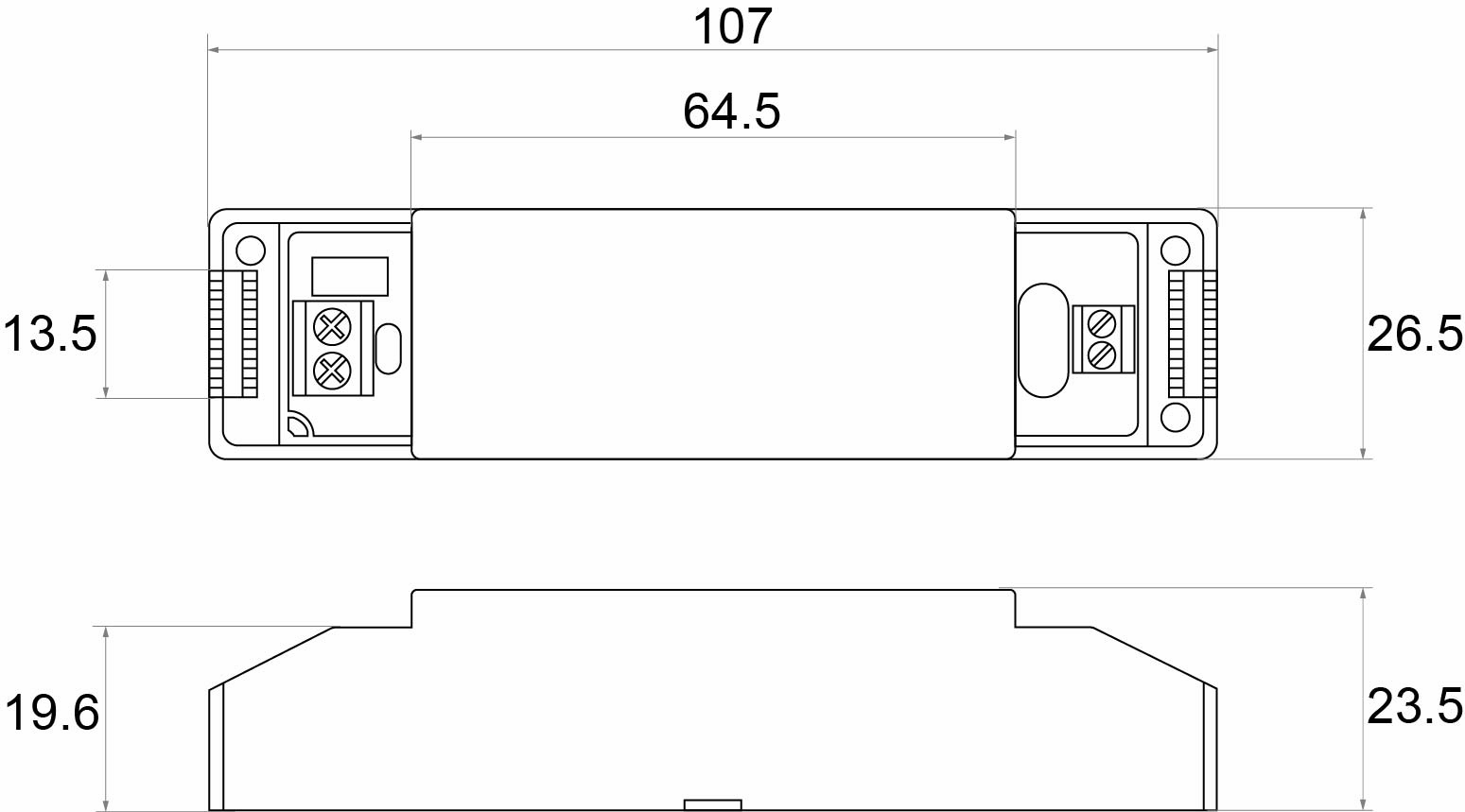

Length 107.00 mm
Width 26.50 mm
Height 23.50 mm
Lamp without
IP rating 20
Power 24 W
Psb 0,00 W
Pno <0,5 W
Current mA 2000 mA
Input voltage 100-240
Output voltage 12
Material Kunststoff
Tollerance 5.00
Temperature range -30 - 50
Suitable light source LED
