rutec LED converter - constant current 83445

LED-Konverter Micro MD 220-240V dimmbar IGBT/Triac LED-Konverter Micro MD 350mA 4,2-9,8W, PFC 0,96

Article nr.: 83445

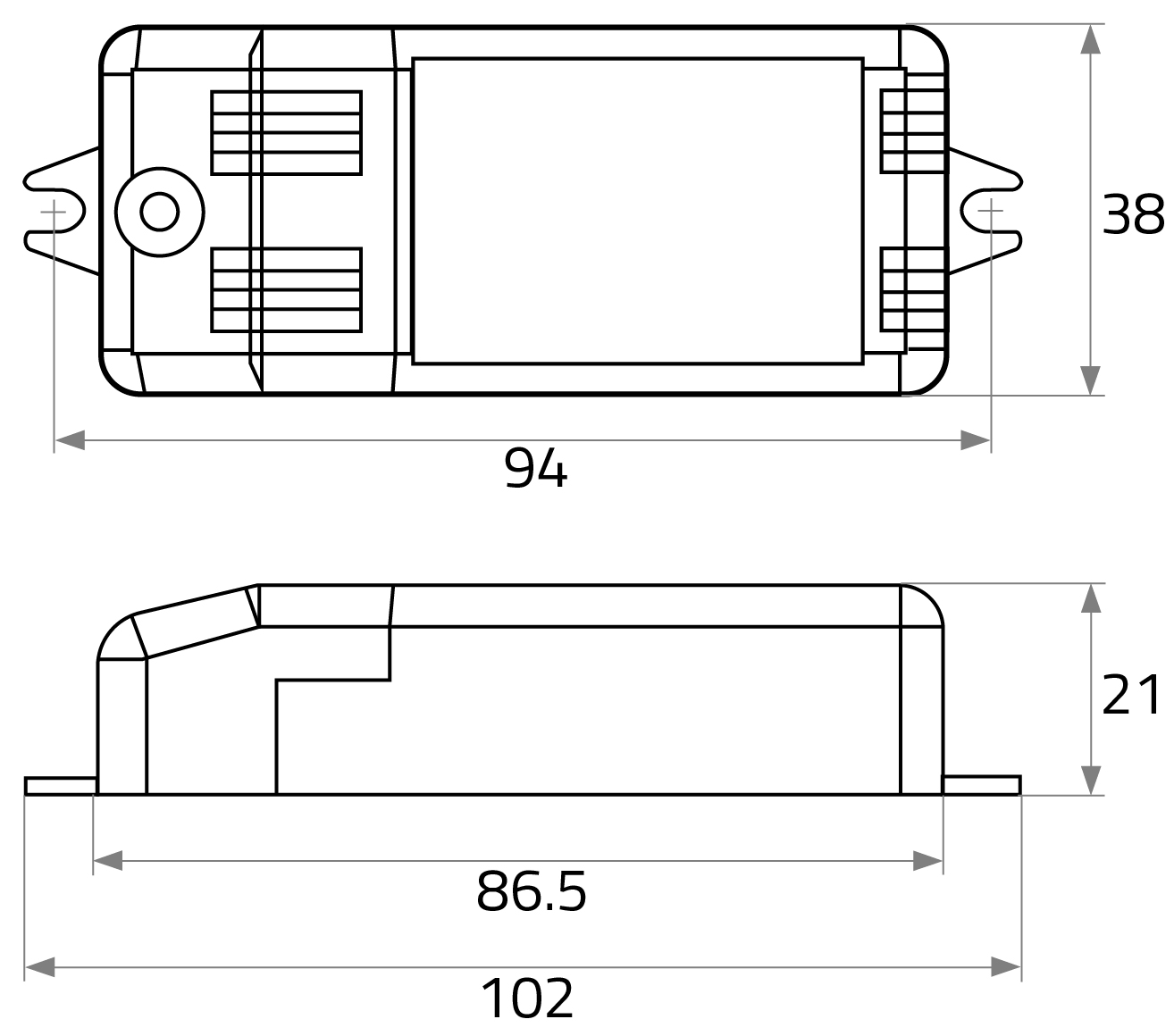

rutec dimmable LED constant current converter · for indoor use, IP20 · built-in active power factor correction (active PFC) · protection class II, CE, RoHS, MM, SELV · protection against short-cicuit, overload, overvoltage, thermal protection · cable cross-section on primary side: 0.75 - 2.5 sqmm · cable cross-section on secondary side: 0.5 - 2.5 sqmm · with strain relief cover · dimmable with trailing edge dimmer · housing: plastic · input voltage: 220-240V AC 50/60 Hz · input voltage: 198-264V DC · output current: 350 mA · power without dimming: 3 - 9.8 W · power with dimming: 4.2 - 9.8 W · inrush current: 2A (50 microsec.) · LxWxH in mm: 102 x 38 x 21

Service

Technical data

Unit Code pcs
BAR code 4012094834450
Housing colour Weiss
Length 102.00 mm
Width 38.00 mm
Height 21.00 mm
Lamp without
IP rating 20
Power 3-9,8 W
Psb 0,00 W
Pno >0,5 W
Current mA 350 mA
Input voltage 220-240
Output voltage 8,5-28
Material Kunststoff
Tollerance 8.00
Temperature range -25 - 45
Suitable light source LED

Not suitable for idle condition
