LED Power supplies and Controllers LED Power supplies and converter

LED power supplies - constant voltage 87644

220-277VAC/186-250VDC, SK I, ENEC LED Netzgerät 48V 320W IP67 - BLD-320-V048-NNS-RB0000

Article nr.: 87644

LED power supply, constant voltage · for indoor and outdoor use · · built-in active power factor correction (active PFC) · protection class I, SELV, CE, REACH, RoHS, ENEC · protection against short circuit, overload and overtemperature · primary and secondary sided 1 input and output line · housing: aluminum · input voltage: 220-277V AC 50/60 Hz, 186-250V DC (emergency power-compatible) · power: 321.6 watt · output current: 6.7 A · output voltage: 48 Volt · LxWxH in mm: 251 x 68 x 38.5 · temperature range: -40 to +50°C · not dimmable on primary side

Service

Technical data

Unit Code pcs
BAR code 4012094876443
Housing colour Aluminium

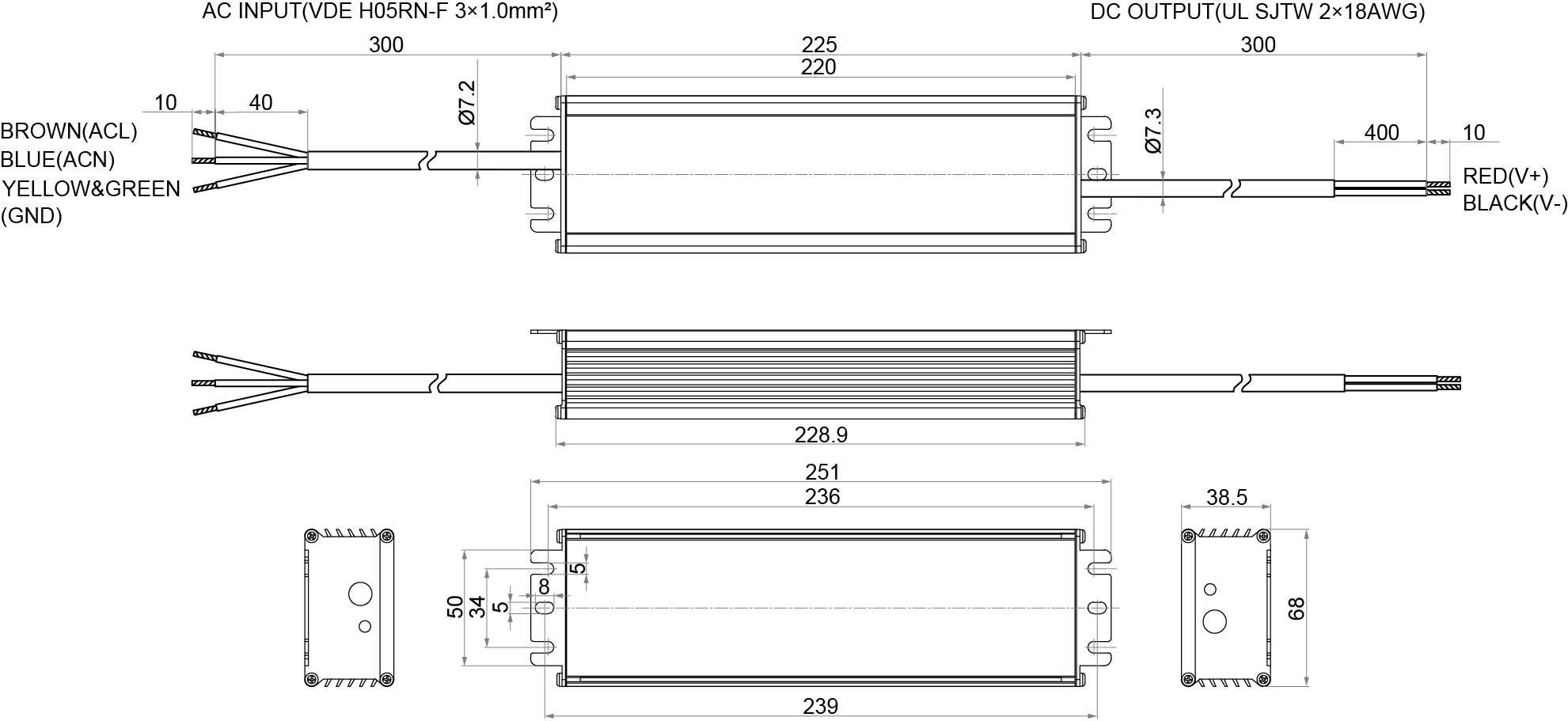

Length 251.00 mm
Width 68.00 mm
Height 38.50 mm
Lamp without
IP rating 67
Power 321,6 W
Psb 0,00 W
Pno <0,5 W
Current mA 6700 mA
Input voltage 220-277
Output voltage 48
Material Aluminium
Tollerance 3.00
Temperature range -40 - 50
Suitable light source LED
