LED Power supplies and Controllers LED Power supplies and converter

LED power supplies - constant voltage 87643

220-277VAC/186-250VDC, SK I, ENEC LED Netzgerät 48V 150W IP67 - BLD-150-V048-NNS-RB0000

Article nr.: 87643

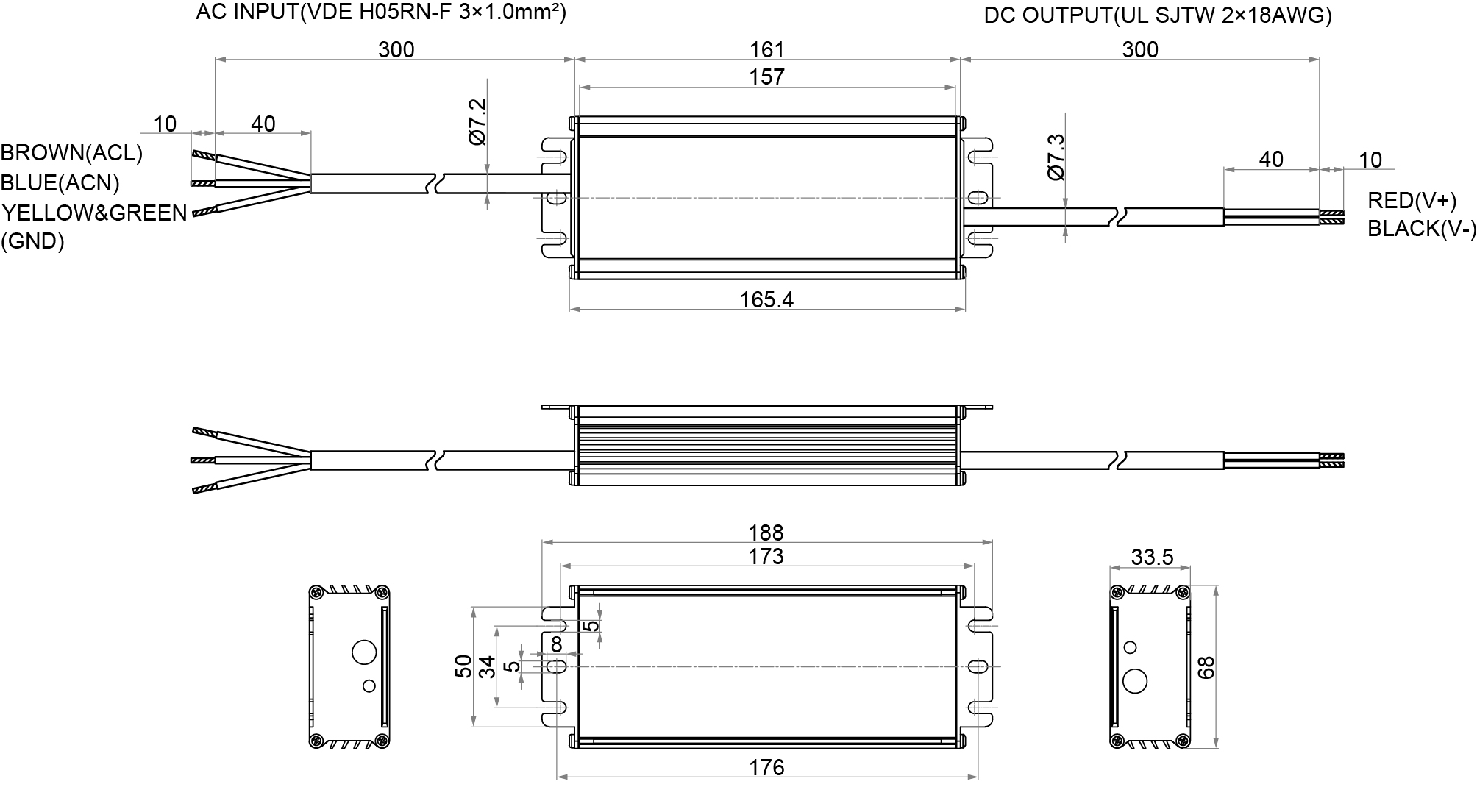

LED power supply, constant voltage · for indoor and outdoor use · · built-in active power factor correction (active PFC) · protection class I, SELV, CE, REACH, RoHS, ENEC · protection against short circuit, overload and overtemperature · primary and secondary sided 1 input and output line · housing: aluminum · input voltage: 220-277V AC 50/60 Hz, 186-250V DC · power: 148.8 watt · output current: 3.1 A · output voltage: 48 Volt · LxWxH in mm: 188 x 68 x 33.5 · temperature range: -40 to +50°C · not dimmable on primary side · not suitable for no load application

Service

Technical data

Unit Code pcs
BAR code 4012094876436
Housing colour Aluminium
Length 188.00 mm
Width 68.00 mm
Height 33.50 mm
Lamp Ohne
IP rating 67
Power 148,8 W
Psb 0,00 W
Pno 1,00 W
Current mA 3.100 mA
Input voltage 220-227
Output voltage 48
Material Aluminium
Tollerance 3.00
Temperature range -40 - 50
Suitable light source LED

Not suitable for idle condition
