LED power supplies - constant voltage 87622

220-277VAC/186-250VDC, SK I, ENEC LED Netzgerät 24V 120W IP67 - BLD-120-V024-NNS-RB0000

Article nr.: 87622

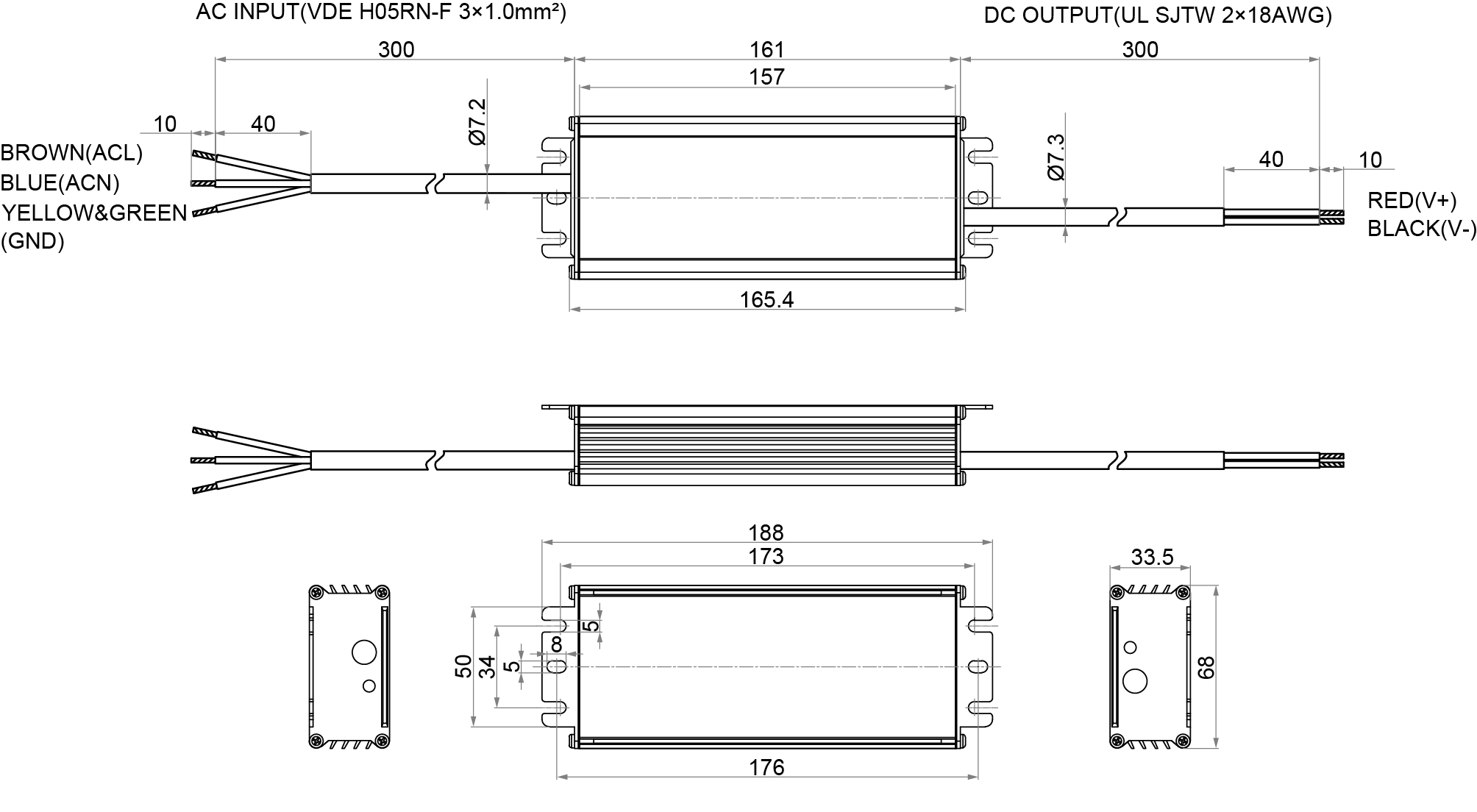

LED power supply, constant voltage · for indoor and outdoor use · · built-in active power factor correction (active PFC) · protection class I, SELV, CE, REACH, RoHS, ENEC · protection against short circuit, overload and overtemperature · primary and secondary sided 1 input and output line · housing: aluminum · input voltage: 220-277V AC 50/60 Hz, 186-250V DC (emergency power-compatible) · power: 120 watt · output current: 5 A · output voltage: 24 Volt · LxWxH in mm: 188 x 68 x 33.5 · temperature range: -40 to +50°C · not dimmable on primary side · not suitable for no load application

Service

Technical data

Unit Code pcs
BAR code 4012094876221
Housing colour Aluminium
Length 188.00 mm
Width 68.00 mm
Height 33.50 mm
Lamp without
IP rating 67
Power 120 W
Psb 0,00 W
Pno >0,5 W
Current mA 5000 mA
Input voltage 220-277
Output voltage 24
Material Aluminium
Tollerance 3.00
Temperature range -40 - 50
Suitable light source LED

Not suitable for idle condition
