LED Power supplies and Controllers LED Power supplies and converter

dimmable LED power supplies - constant voltage 85490

220-240V AC, Phasenanschnitt LED-Netzgerät 24V 50-120W IP67 dimmbar

Article nr.: 85490

rutec dimmable LED power supply, constant voltage · for indoor and outdoor use · Protection class I, CE, REACH, RoHS, SELV · Protection against short circuit, overload, ove voltage and over temperature · Primary and secondary sided 1 input and output line · Housing: aluminium · Input voltage: 220-240V AC · Power: 50-120 watt · output current: 2.08-5.0 A · output voltage: 24 Volt · LxWxH in mm: 250 x 80.3 x 33.5 · temperature range: -20 to +50°C · dimmable on primary side via TRIAC dimmer · dimming range: 3-100%

Technical data

Unit Code pcs
BAR code 4012094854908
Housing colour Aluminium

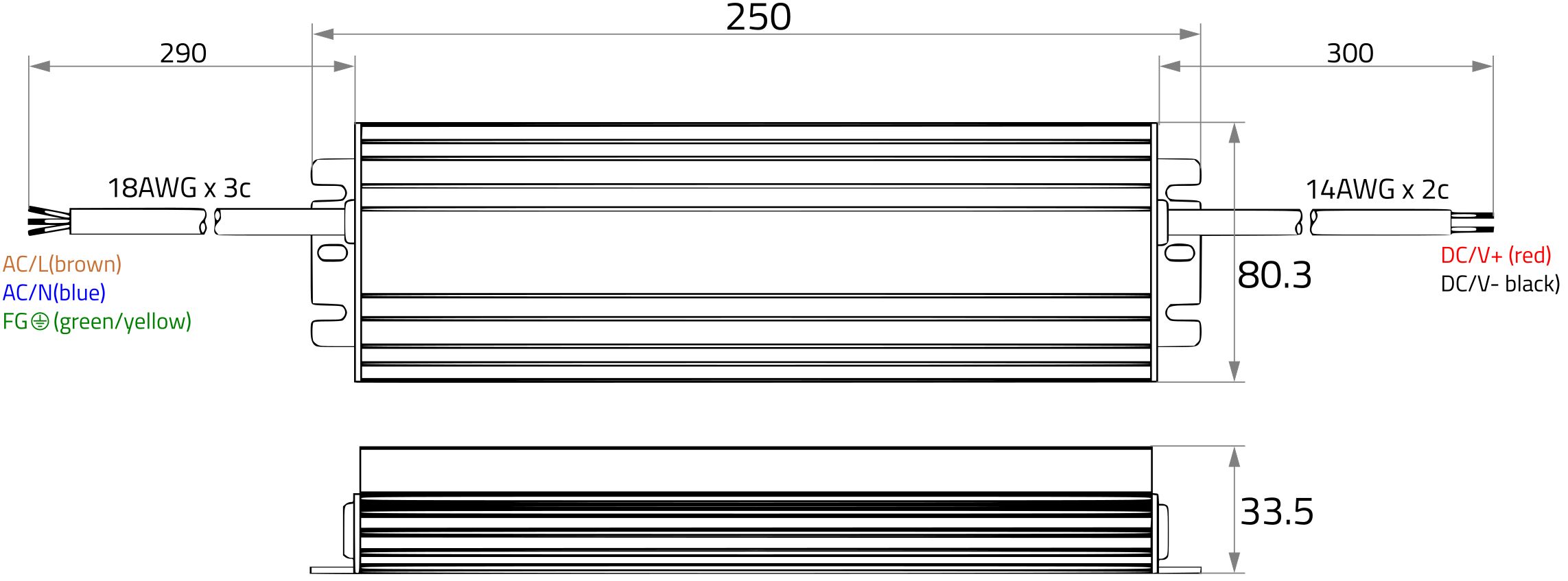

Length 250.00 mm
Width 80.30 mm
Height 33.50 mm
Lamp Ohne
IP rating 67
Power 50-120 W
Psb 0,00 W
Pno 0,85 W
Current mA 2.083-5.000 mA
Input voltage 220-240
Output voltage 24
Material Aluminium
Tollerance 5.00
Temperature range -20 - 50
Suitable light source LED

Not suitable for idle condition
