dimmable LED power supplies - constant voltage 85483

220-240V AC, Phasenanschnitt LED Netzgerät 24V 70-199,2W IP67 dimmbar

Article nr.: 85483

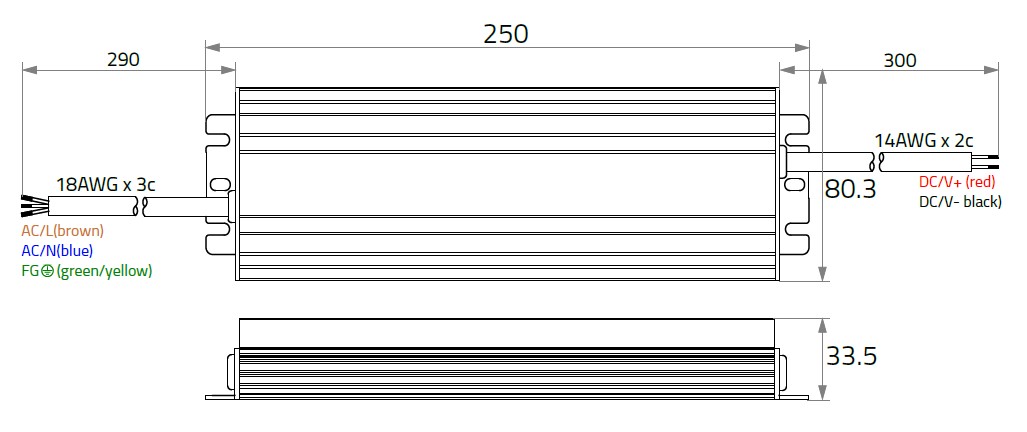

rutec dimmable LED power supply, constant voltage · for indoor and outdoor use, IP67 · CE, REACH, RoHS, MM, SELV, active PFC · protection class I · protection against short circuit, overload, overtemperature and overvoltage · primary and secondary sided 1 input and output line approx. 300 mm · housing: aluminum · input voltage: 220-240V AC · Power: 70-199.2 watt · output current: 2.92-8.3 A · output voltage: 24 Volt · LxWxH in mm: 250 x 80.3 x 33.5 · temperature range: -30 to +50°C · dimmable on primary side via TRIAC dimmer · depending on the electronics of the phase dimmer, the dimming range may be limited in the · upper and/or lower dimming range (threshold values can be taken from the dimming electronics · used).

Service

Technical data

Unit Code pcs
BAR code 4012094854830
Housing colour Aluminium
Length 250.00 mm
Width 80.30 mm
Height 33.50 mm
Lamp without
IP rating 67
Power 70-199,2 W
Psb 0,00 W
Pno <0,5 W
Current mA 2917-8300 mA
Input voltage 220-240
Output voltage 24
Material Aluminium
Tollerance 5.00
Temperature range -30 - 50
Suitable light source LED
