LED Power supplies and Controllers LED Power supplies and converter

dimmable LED power supplies - constant voltage 85481

220-240V AC, Phasenanschnitt LED Netzgerät 24V 100-300W IP67 dimmbar

Article nr.: 85481

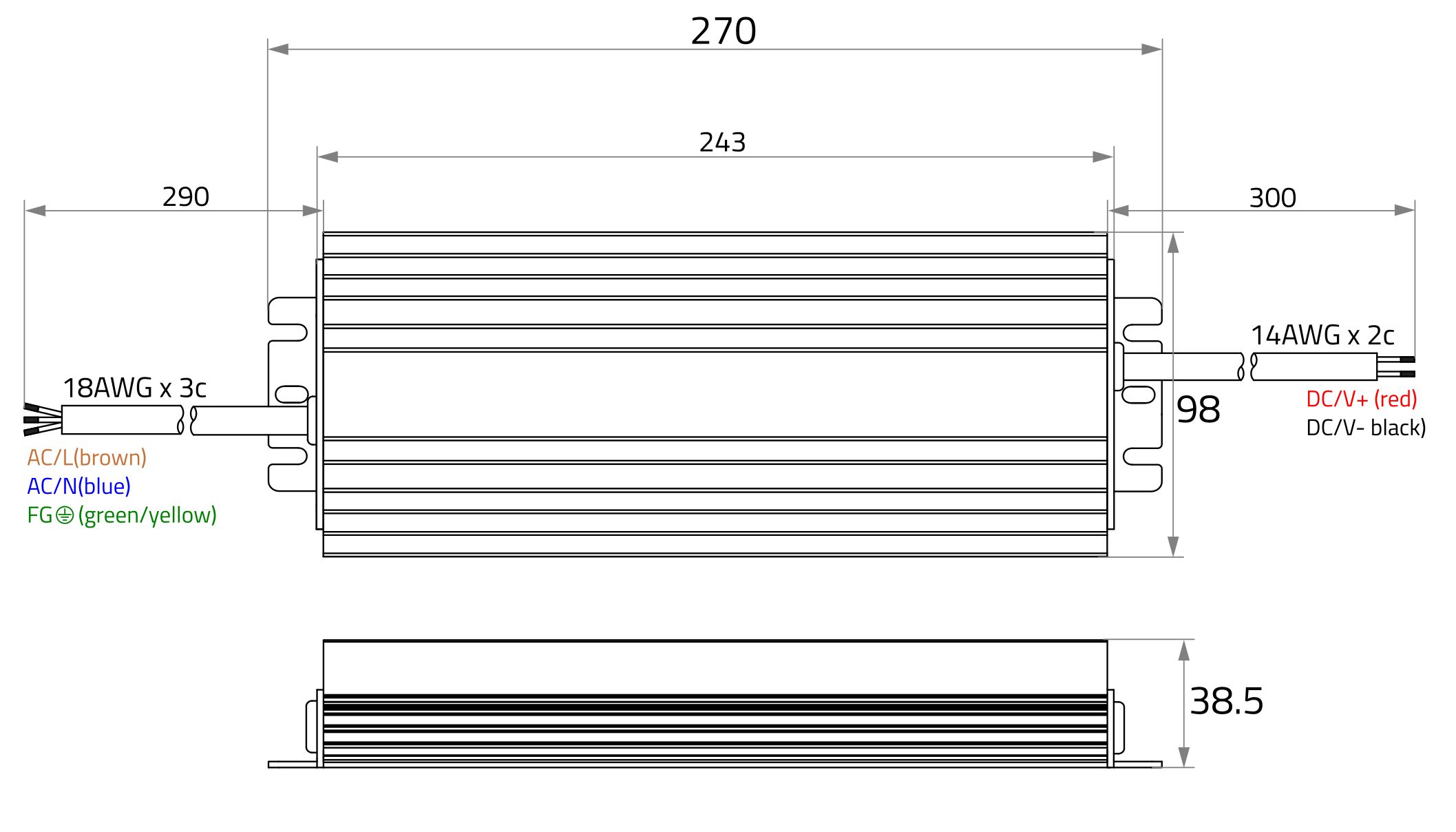

rutec dimmable LED power supply, constant voltage · for indoor and outdoor use, IP67 · CE, REACH, RoHS, SELV, active PFC · protection class I · protection against short circuit, overload, overtemperature and overvoltage · primary and secondary sided 1 input and output line approx. 300 mm · housing: aluminum · input voltage: 220-240V AC · Power: 100-300 watt · output current: 4.16-12.5 A · output voltage: 24 Volt · LxWxH in mm: 270 x 98 x 38.5 · temperature range: -30 to +50°C · dimmable on primary side via TRIAC dimmer · depending on the electronics of the phase dimmer, the dimming range may be limited in the · upper and/or lower dimming range (threshold values can be taken from the dimming electronics · used).

Service

Technical data

Unit Code pcs
BAR code 4012094854816
Housing colour Aluminium
Length 270.00 mm
Width 98.00 mm
Height 38.50 mm
Lamp without
IP rating 67
Power 100-300 W
Psb 0,00 W
Pno <0,5 W
Current mA 4166-12500 mA
Input voltage 220-240
Output voltage 24
Material Aluminium
Tollerance 5.00
Temperature range -30 - 50
Suitable light source LED
