220-240V AC, Phasenanschn. LED-Netzgerät 24V 40-75,6W IP20 Dimmb.
Article nr.: 85480-V2

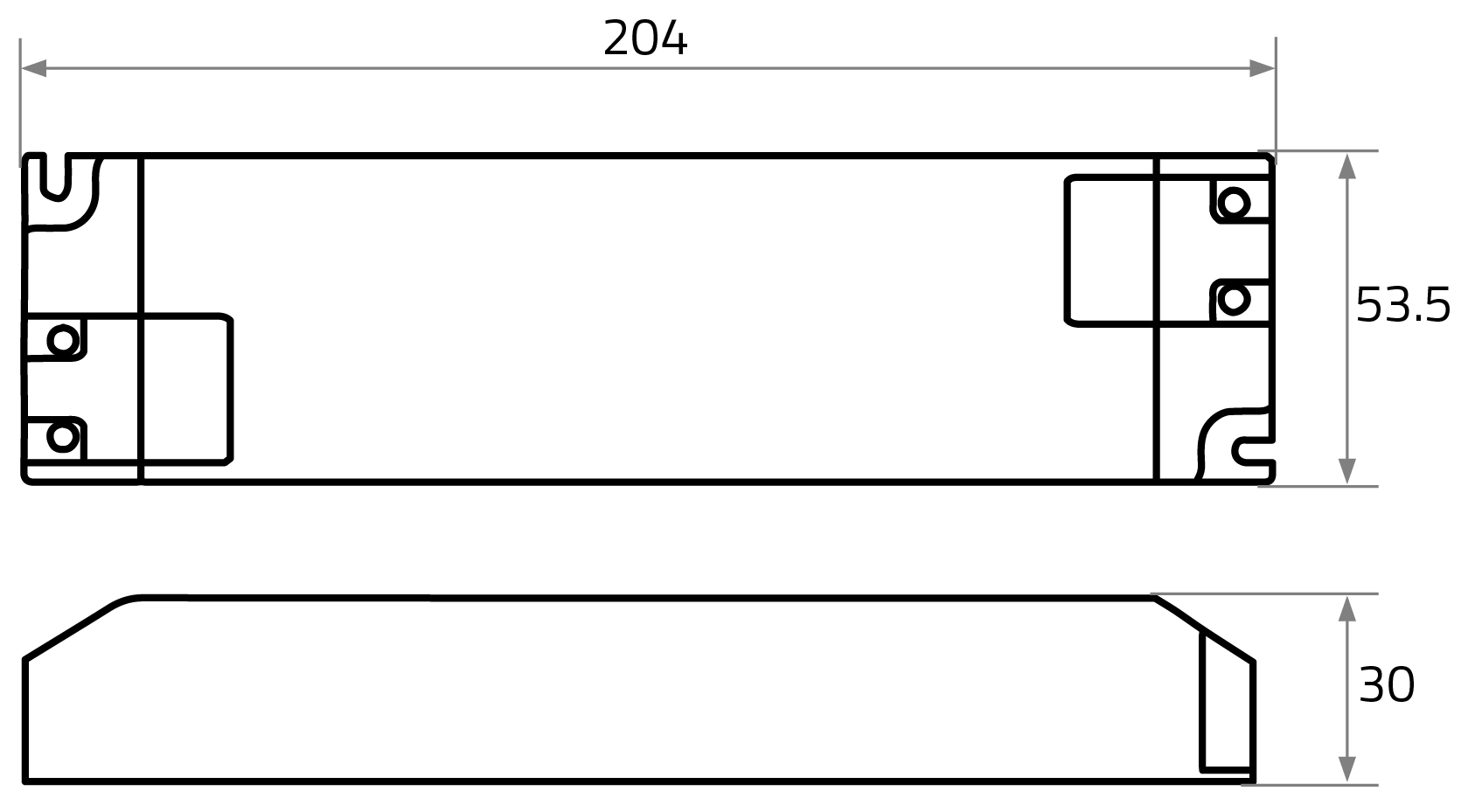

rutec dimmable LED power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · protection against short circuit, over current, over voltage and over temperature · cable cross-section connection terminals: 0.5 - 1.5 sq mm · housing: plastic · input voltage: 220-240 V AC · power: 40-75.6 W · output current: 3.15 A · output voltage: 24 V DC · LxWxH in mm: 204 x 53.5 x 30 · temperature range: -20 to +40°C · dimmable on primary side via TRIAC · depending on the electronics of the phase dimmer, the dimming range may be limited in the · upper and/or lower dimming range (threshold values can be taken from the dimming electronics · used).
