LED recessed downlights COB (Chip On Board) GAIL

ALU57301WW

GAIL LED-Einbaustrahler1er Set on-off plug&play schwenkb.,rund,300mA,6W,IP40,3000K,CRI80-ws

Article nr.: ALU57301WW

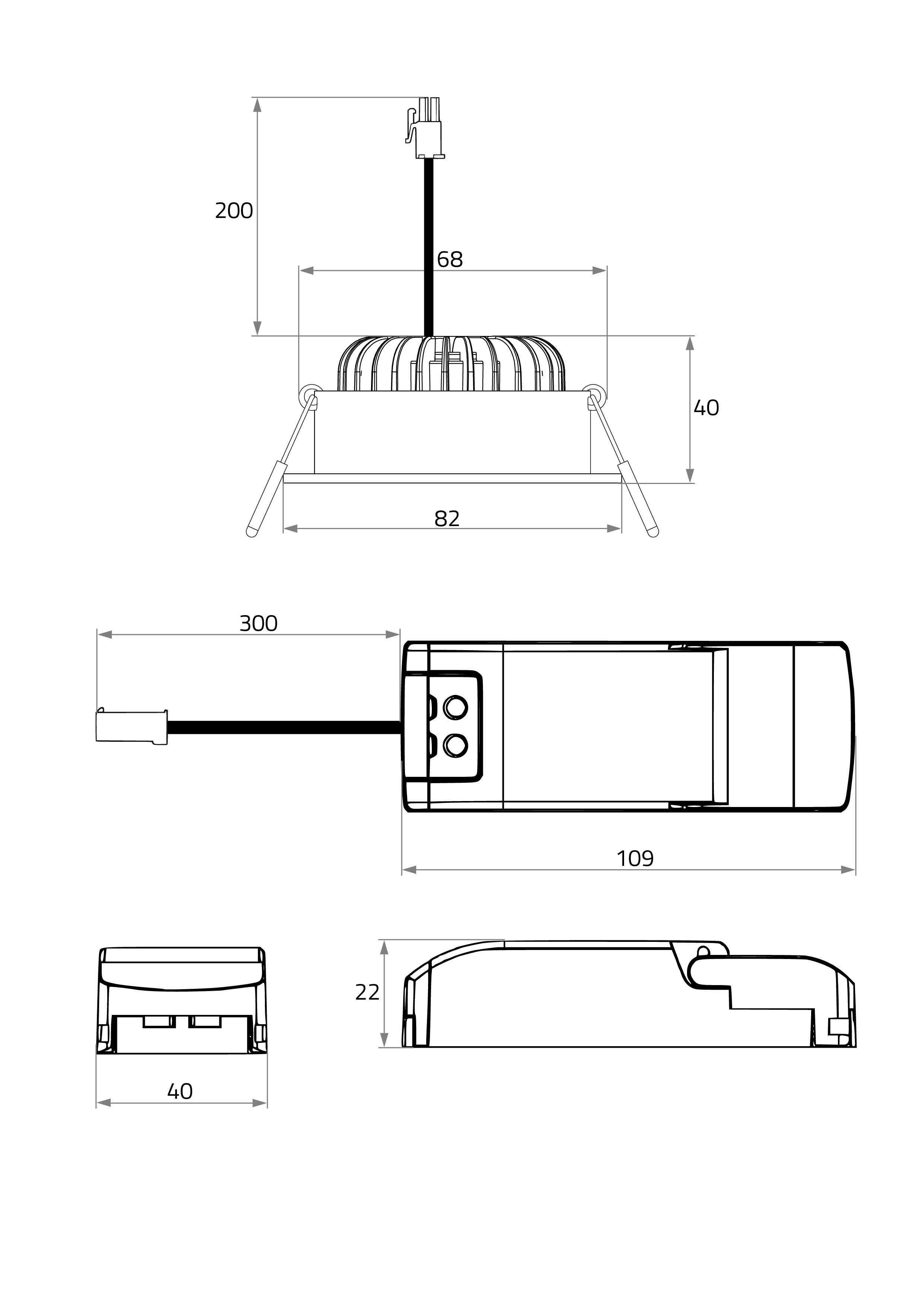

for indoor use, IP40 · · housing: diecast aluminium, PC reflector, transparent plastic cover · housing colour: white · swiveling · beam angle: 36° · power: 6 W · light colour: 3000 K · luminous flux: 718 lm · CRI: >80 · lifespan L70: >= 50.000 h · input voltage range: 200-264 V AC, 50/60 Hz · protection class II · · installation depth: 45 mm · ceiling cut out: 68 mm · outer diameter: 82 mm · energy efficiency class: A++ · including switchable constant current converter · with connector for plug-and-play-operation with 450 mm connection cable · tool-free replacement of the lamp · LxWxH constant current converter in mm: 95 x 35 x 24

Technical data

Unit Code pcs
BAR code 4012094573212
Housing colour Weiss
Height 40.00 mm
Outer diameter 82 mm
Hole size 68 mm
Depth in ceiling 45.00 mm
LED colour WW ca. 3000K
Lightoutput per fixture 718.00 lm
Lamp Inklusive LED
IP rating 40
Power 6 W
Current mA 300 mA
Voltage 220-240 V
Lamp base sonstige
Input voltage 180-264
Output voltage 14-24
Material Aluminium
Tollerance 5.00
Efficiency 76.00
Temperature range -30 - 40
Energy ffficiency class A++
CRI ≥ 80
