LED Power supplies and Controllers LED control and bus technology

LED Funk Controller 80540

Glas - schwarz AC-Funk Touchpanel 4 ZONEN RGBW

Article nr.: 80540

Radio touch panel, 4 zones RGBW, including power supply for 230 V AC connection · for indoor use · Material: plastic/glass, black · IP20 · Protection class II, CE, RoHS · Voltage: 100 - 230 V AC, 50 Hz · Standby power: 1.2 W · Transmission power: max. 1.5 W · Remote control range: 30 metres with cler view · Carrier frequency: 868 MHz · Maximum cable cross-section at terminal: 1.5 sq mm · with memory effect · Control up to 4 zones independently · highly sensitive touch colour wheel · quick, precise colour control · Selection of 10 different preprogrammed colour gradients · dimming and switching of single and mixed colors · per zone: 4 memory functions for colour scene or - sequence · storable up to 8 touch panels per radio receiver · (excecpt for 80460/80560)

Technical data

Unit Code pcs
BAR code 4012094805405
Housing colour Schwarz

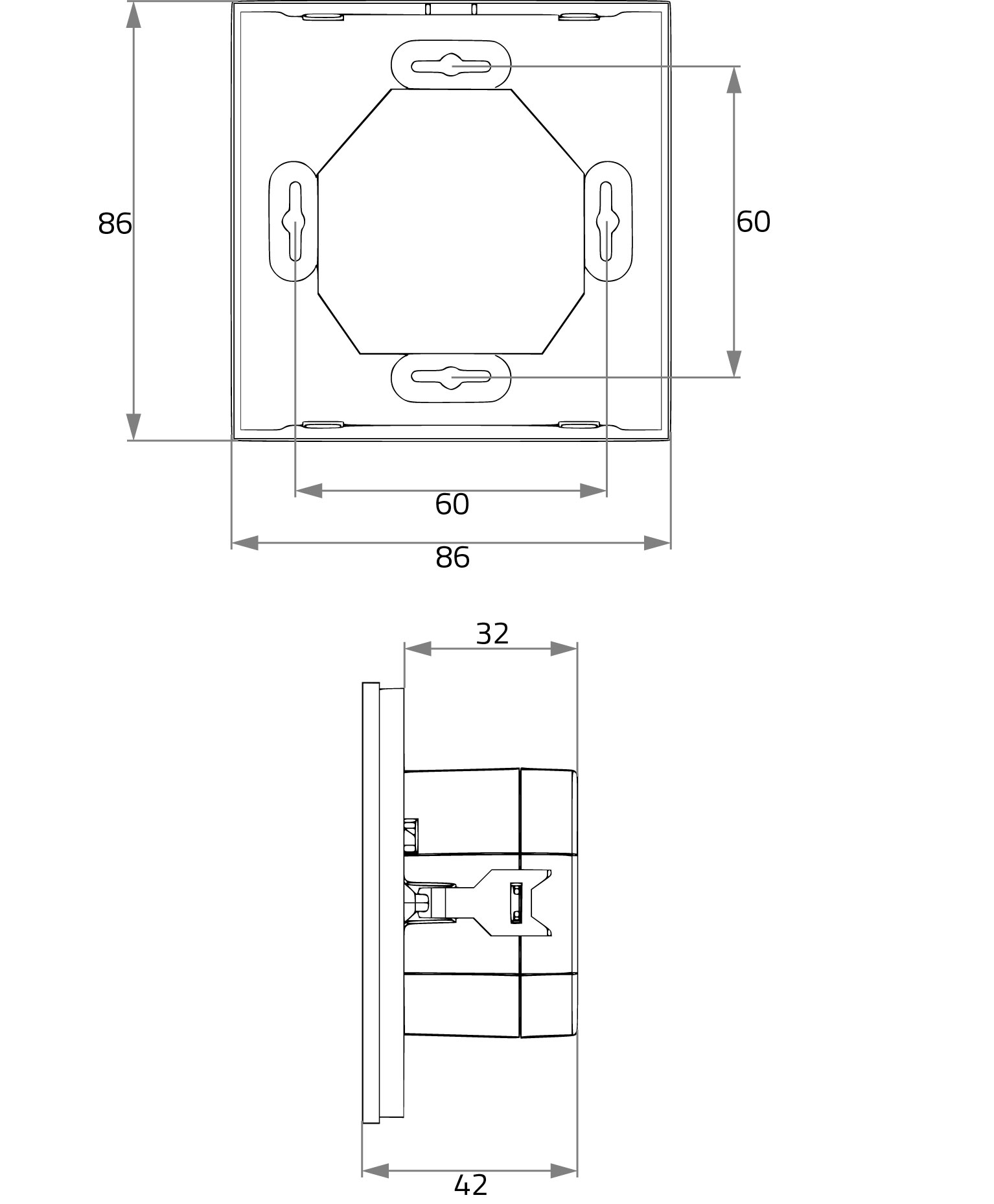

Length 86.00 mm
Width 86.00 mm
Height 42.00 mm
Hole size 55 mm
Depth in ceiling 34.00 mm
Lamp Ohne
IP rating 20
Power 2 W
Input voltage 100-240
Material Glas
Temperature range -20 - 50
